DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/120 - 370VDC. Output 24VDC @ 4,2A 4KVAC Isolation (HDR-100-24)
PLASTIC CASE SWITCH MODE POWER SUPPLY
OVERVIEW

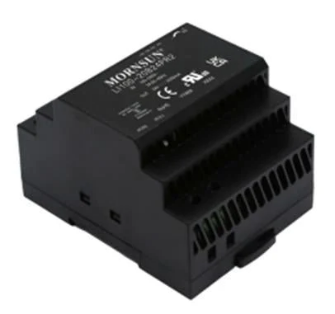

LI100-20BxxPR2 is Mornsun’s AC-DC converter featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC are safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
FEATURE
Universal 85 - 264VAC or 120 - 370VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -40℃ to +70℃
High I/O isolation test voltage up to 4000VAC
Industrial product technology design
Over-voltage class III (Designed to meet EN61558 safety standards)
Low standby power consumption, high efficiency
Low ripple & noise
Output short circuit, over-current, over-voltage protection
EN62368 safety approved
SPECIFICATIONS
Type
DIN Rail Single Output
Output Power
100.8W
Series
LI100-20B
Part Number
LI100-20B24PR2
Mount
DIN-Rail
IP Level
Non-Waterproof
Output Voltage
24V
Output Current
4.2A
Input voltage range
85-264VAC; 120-370VDC
Inrush current (max.)
Cold start, 70A at 230VAC
Output voltage adjustable range
21.6-29V
Efficiency at 230VAC
90%
Max. capacitive load
2500µF
Input current (max.)
1.6A at 230VAC
Short circuit protection
Hiccup, continuous, self-recovery
Over-current protection
110%-200% Io, self-recovery
Withstand voltage
300VAC
Working temperature
-40 - 70°C
Connection
Terminal block
Package dimensions
70 x 92.66 x 58 mm
Weight
235 gm
Cooling method
Free air convection
Case material
Plastic, heat-resistant (UL94V-0)
MTBF
>300000 Hrs
Safety class
CLASS II
Safety standards
UL62368/EN62368/IEC62368
EMC standards
CISPR32/EN55032 CLASS B, CISPR32/EN55032 CLASS B, IEC/EN61000-4-3 10V/m
