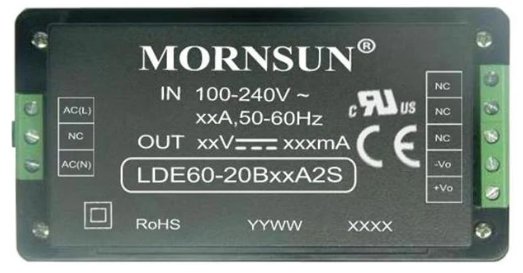

LDE60-20Bxx series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, high power density, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/UL/EN62368 standards. The converters are widely used in industrial, power, instrumentation, communication and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.
FEATURE
Universal 85-264VAC or 100-370 VDC input voltage
Operating ambient temperature range: -40℃to+70℃
High I/O isolation test voltage up to 4000VAC
High reliability, high power density, high efficiency
Output short circuit, over-current, over-voltage protection
