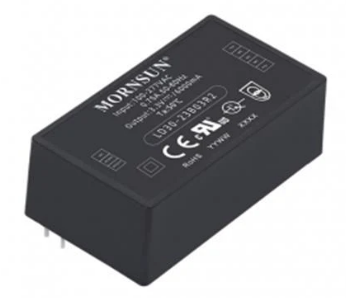

LD30-23B12R2

LD30-23B12R2

Regular price
Dhs. 51.56
Regular price
Sale price
Dhs. 51.56
Unit price
per
Availability
Sold out

Encapsulated PCB Mount Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 12VDC @ 2,5A. (IRM-30-12)

PCB MOUNT SWITCH MODE POWER SUPPLY
OVERVIEW
LD30-23BxxR2 series AC-DC converters is one of Mornsun’s new generation compact size power converters. It features wide AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368-1/EN60335-1/EN61558-1 standards. The converters are widely used in industrial, power, home appliances, instrumentation, communication and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.
FEATURE
  • Input voltage range: 85 - 305VAC and120- 430VDC (48V output), 85 - 305VAC and 100 - 430VDC(others)
  • Operating ambient temperature range: -40℃to+85℃
  • Up to 90% efficiency
  • No-load power consumption as lowas 0.1W
  • 5000m altitude application
  • EMI performance meets CISPR32/EN55032CLASSB, EN55014
  • Meets surge ±2KV without additional circuits
  • OVC Ⅲ (meet EN61558-1)
ADDITIONAL INFORMATION
Device Power Supply
Type PCB Mount | Switch Mode
Input Voltage 85 ~ 305VAC/120 - 430VDC
Output 12VDC
Output Current 2,5A
Size 69.50 x 39.00 x 24.00 mm

Datasheet Download
