Product Details

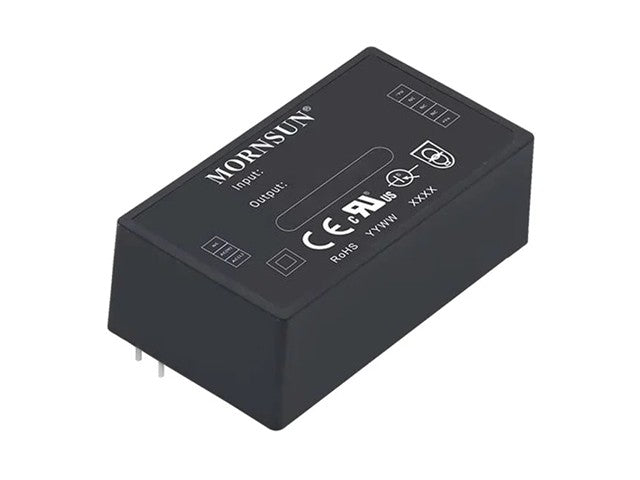

Mornsun AC/DC PCB Mount PSU VI=85-305VAC (100-430VDC) VO=5V 6A 30W (IRM-30-5)
AC/DC PCB Mount Power Supply Unit
Specifications
|
Number of Outputs
|
1
|
|
Voltage - Input
|
85 ~ 305 VAC, 100 ~ 430 VDC
|
|
Voltage - Output 1
|
5V
|
|
Current - Output (Max)
|
6A
|
|
Power (Watts)
|
30 W
|
|
Applications
|
Household Appliances, ITE (Commercial)
|
|
Operating Temperature
|
-40°C ~ 85°C (With Derating)
|
|
Efficiency
|
86%
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
4-DIP Module
|
|
Size / Dimension
|
2.74" L x 1.54" W x 0.94" H (69.5mm x 39.0mm x 24.0mm)
|
|
Standard Number
|
60335-1; 62368-1
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±1.5%
|
Downloads
Additional Information
| Device | Power Supply Unit |
| Type | AC/DC | PCB Mount |
