Encapsulated PCB Mount Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 15VDC @ 1A. (IRM-15-15)
PCB MOUNT SWITCH MODE POWER SUPPLY
OVERVIEW

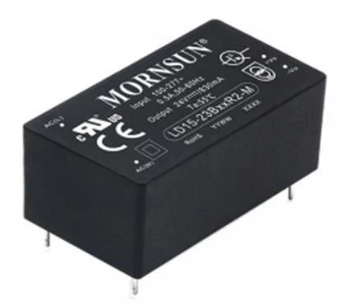

LD15-23BxxR2-M series AC-DC converters is one of Mornsun’s new generation compact size power converter. It features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/ EN61558/IEC/EN60601-1/ANSI/AAMI ES60601-1 standards. The converters are widely used in industrial, power, medical treatment, home appliances, instrumentation, communication and civil application.
FEATURE
Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range
Operating ambient temperature range: -40℃to+85℃
Up to 87% efficiency
No-load power consumption 0.1W
5000m altitude application
Plastic case meets UL94V-0 flammability
EMI performance meets CISPR32/EN55032 CLASS B, EN55014
IEC/EN/UL62368/EN60335/EN61558 safety approval
Design to meet IEC/EN60601-1/ANSI/AAMI ES60601-1C standards (2xMOPP)
