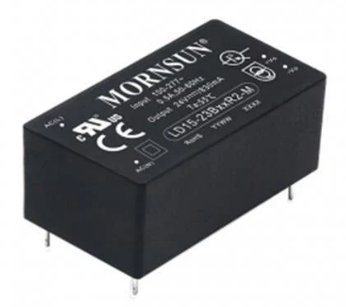

LD15-23B12R2-M

LD15-23B12R2-M

Regular price
Dhs. 33.44
Regular price
Sale price
Dhs. 33.44
Unit price
per
Availability
Sold out

Encapsulated PCB Mount Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 12VDC @ 1,25A. (IRM-15-12)

PCB MOUNT SWITCH MODE POWER SUPPLY
OVERVIEW
LD15-23BxxR2-M series AC-DC converters is one of Mornsun’s new generation compact size power converter. It features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/ EN61558/IEC/EN60601-1/ANSI/AAMI ES60601-1 standards. The converters are widely used in industrial, power, medical treatment, home appliances, instrumentation, communication and civil application.
FEATURE
  • Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range
  • Operating ambient temperature range: -40℃to+85℃
  • Up to 87% efficiency
  • No-load power consumption 0.1W
  • 5000m altitude application
  • Plastic case meets UL94V-0 flammability
  • EMI performance meets CISPR32/EN55032 CLASS B, EN55014
  • IEC/EN/UL62368/EN60335/EN61558 safety approval
  • Design to meet IEC/EN60601-1/ANSI/AAMI ES60601-1C standards (2xMOPP)
ADDITIONAL INFORMATION
Device Power Supply
Type PCB Mount | Switch Mode
Input Voltage 85 ~ 305VAC/100 - 430VDC
Output 12VDC
Output Current 1,25A
Size 47.60 x 26.80 x 23.50 mm

Datasheet Download
