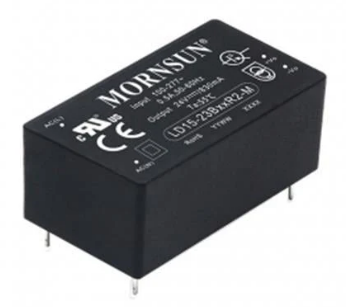

LD15-23B05R2-M
LD15-23B05R2-M
Regular price
Dhs. 37.00
Regular price
Sale price
Dhs. 37.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Encapsulated PCB Mount Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 5VDC @ 3A. (IRM-15-5)
PCB MOUNT SWITCH MODE POWER SUPPLY
OVERVIEW
LD15-23BxxR2-M series AC-DC converters is one of Mornsun’s new generation compact size power converter. It features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/ EN61558/IEC/EN60601-1/ANSI/AAMI ES60601-1 standards. The converters are widely used in industrial, power, medical treatment, home appliances, instrumentation, communication and civil application.
FEATURE
- Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range
- Operating ambient temperature range: -40℃to+85℃
- Up to 87% efficiency
- No-load power consumption 0.1W
- 5000m altitude application
- Plastic case meets UL94V-0 flammability
- EMI performance meets CISPR32/EN55032 CLASS B, EN55014
- IEC/EN/UL62368/EN60335/EN61558 safety approval
- Design to meet IEC/EN60601-1/ANSI/AAMI ES60601-1C standards (2xMOPP)
ADDITIONAL INFORMATION
Device | Power Supply |
Type | PCB Mount | Switch Mode |
Input Voltage | 85 ~ 305VAC/100 - 430VDC |
Output | 5VDC @ 3A |
Size | 47.60 x 26.80 x 23.50 mm |
Datasheet Download
