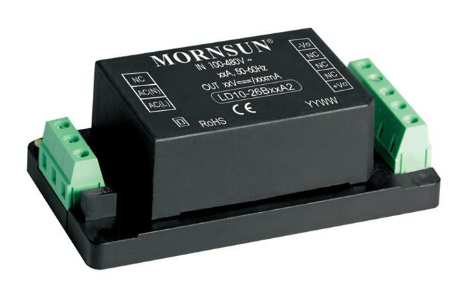

LD10-26B05A2

Regular price: Dhs. 101.78
Regular price
Sale price: Dhs. 101.78
Unit price: per
Availability: Sold out

Quantity must be 1 or more

Encapsulated Surface Mount Switch Mode Power Supply Input: 90 ~ 528VAC/100 - 745VDC. Output 5VDC @ 2A. 4KVAC Isolation

SURFACE MOUNT SWITCH MODE POWER SUPPLY

FEATURE

Ultra wide input voltage range: 90 - 528VAC/100 - 745VDC
Regulated output, Low ripple & noise
Operating temperature range: -40℃ to +70℃
Output short circuit, over-current, over–voltage protection
Isolation voltage: 4KVAC
EFT /Surge: ±4KV Perf. Criteria B
EN62368 approval

ADDITIONAL INFORMATION

Device	Power Supply
Type	Surface Mount \| Switch Mode
Input Voltage	90 ~ 528VAC/100 - 745VDC
Output	5VDC
Output Current	2A
Size	96.10 x 54.00 x 38.50 mm

Datasheet Download
