Encapsulated PCB Mount Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 12VDC @ 830mA. (IRM-10-12)
PCB MOUNT SWITCH MODE POWER SUPPLY
OVERVIEW

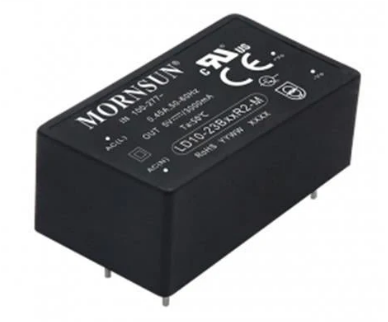

LD10-23BxxR2-M series AC-DC converters is one of Mornsun’s new generation compact size power converter. It features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/ EN61558/IEC/EN60601-1/ANSI/AAMI ES60601-1 standards. The converters are widely used in industrial, power, medical treatment, home appliances, instrumentation, communication and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.
FEATURE
Ultra-wide 85 - 305VAC and 100 - 430VDCinput voltage range
Operating ambient temperature range: -40℃to+85℃
Up to 85% efficiency
No-load power consumption < 0.1W
5000m altitude application
EMI performance meets CISPR32/EN55032 CLASS B, EN55014
Design to meet IEC/EN60601-1/ANSI/AAMI ES60601-1standards (2xMOPP)
