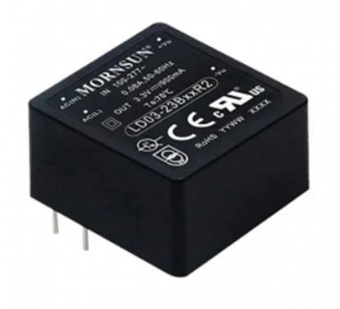

Encapsulated Mini PCB Mount Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 3,3VDC @ 900mA
PCB MOUNT SWITCH MODE POWER SUPPLY
OVERVIEW
LD03-23BxxR2 series AC-DC converters is one of Mornsun’s compact size power converter. It features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/EN61558 standards. The converters are widely used in industrial, power, home appliances, instrumentation, communication and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet
FEATURE
Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range
1 × 1 inch compact size
Operating ambient temperature range: -40℃ to +85℃
Up to 78% efficiency
No-load power consumption 0.1W
5000m altitude application
Plastic case meets UL94V-0 flammability
EMI performance meets CISPR32/EN55032 CLASS B, EN55014
