Product Details

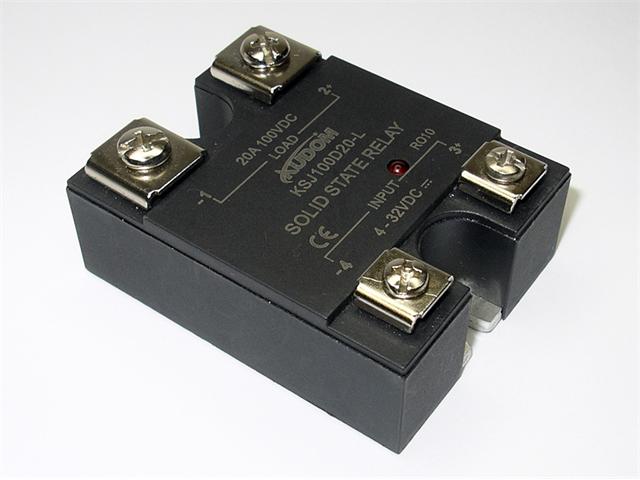

100VDC 20A Single Phase Solid State Relay with 4~32VDC Control Voltage and LED Indication
100VDC 20A Solid State Relay
Features
Suitable cover : KPC-0A ; Suitable heatsink : KHS-1A , KHS-1B and KHS-1C
Specifications
- Input Circuit :
- Control Voltage Range : 4~32VDC
- Minimum Turn-On Voltage : 4VDC
- Minimum Turn-Off Voltage : 1VDC
- Maximum Input Current : 28mA@32VDC
- Output Circuit
- Load Voltage Range : 0~100VDC
- Transient Overvoltage : 80Vpk
- Load Current Range : 0.02~4A
- Maximum Surge Current [@10ms] : 80A
- Maximum Turn-On Time : 100us
- Maximum Turn-Off Time : 500us
- Dielectric Strength : ≥2500Vrms [Input/Output]
Downloads
Additional Information
| Keywords | relay, solid state, solid state relay, kudom, |
| Device | Relay |
| Type | Solid State | DC Output |
| Highlights | 58.6x45.7x26.56mm | SIL | LED Indication |
