Product Details

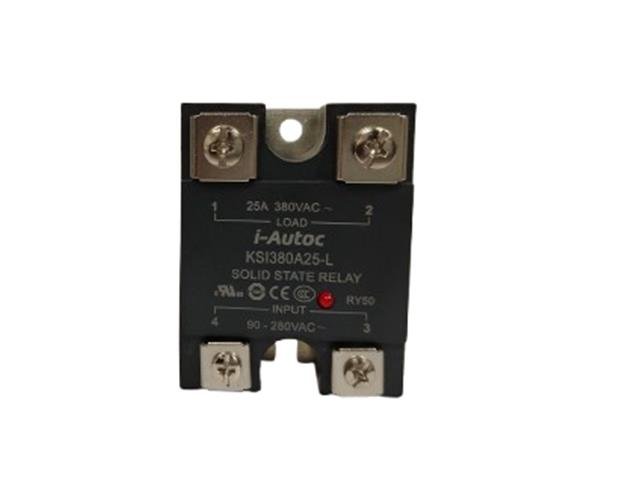

Solid State Relay 25A CV=85-280VAC Load Voltage 380VAC Zero Cross LED Indication
Single Phase AC Output Solid State Relay
Overview
KSI series is a single phase solid state relay that uses either a Triac(10-25A) or a SCR output. It is widely used in various industrial applications, and can be used for resistive,inductive or capacitive loads. The control voltage is 4-32VDC or 90-280VAC, load voltage is 240VAC, 380VAC,480VAC or 600VAC. Wide load current range from 10 to 125A.
Features
Suitable cover : KPC-0A ; Suitable heatsink : KHS-1A , KHS-1B and KHS-1C
Specifications
- Zero crossing or Ramdon-on
- Load current: 10A-125A @48-660VAC
- TRIAC or SCR output
- AC or DC control
- Dielectric strength ≥4000VACrms
- LED indicator
- Build-in MOV or TVS option
Additional Information
| Device | Relay |
| Type | Solid State |
