Product Details

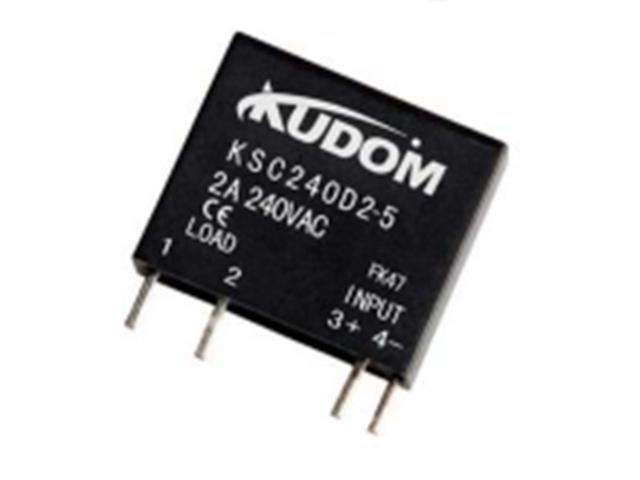

Solid State Relay Sil 2A CV=12VDC Load Voltage 240VAC Random On
Overview
Features
Specification
Â
Input Circuit
- Control Voltage Range : 9.6-14.4VDC
- Minimum Turn-On Voltage : 9.6VDC
- Minimum Turn-Off Voltage : 1.0VDC
- Maximum Input Current : 25mA
Output Circuit
- Load Voltage Range : 48-280VAC
- Transient Overvoltage : 600Vpk
- Maximum Surge Current (@10 ms) : 2A : 35A
