Product Details

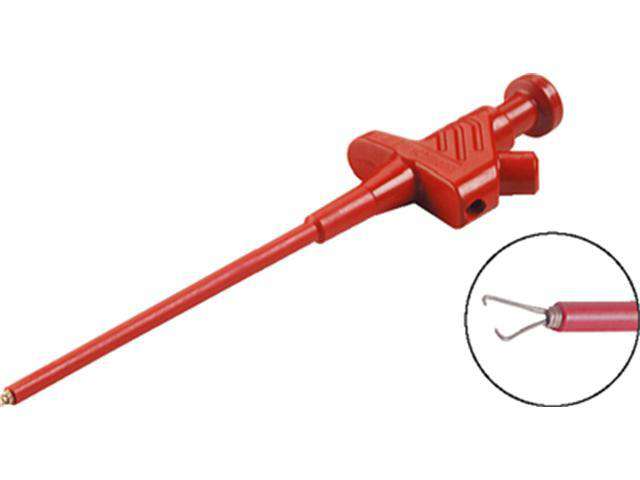

4mm Clamp type Test Probe • Red • Rotating grip jaws
Overview
Clamp-type test probe with rotating grip jaws and flexible shaft. The special form of the grip jaws allows clamping of pins and wires up to a maximum of 4 mm diameter. 4 mm diameter brass socket connection with side screw, grip jaws additionally nickel-plated.
Features
Rotating grip jaws
Specification
| connection | 4 mm socket (unsprung) screw terminal |
| rated voltage(1) | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O (3) |
| rated current(1) (consider derating curve) |
4 A |
| material socket | brass |
| housing material | PA |
| temperature range acc. To IEC61010(2) | -25 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
V-0 |
| clamp type | rotating grip jaws, tin plated |
| clamping range | 4 mm |
| standard | IEC 61010 |
