Product Details

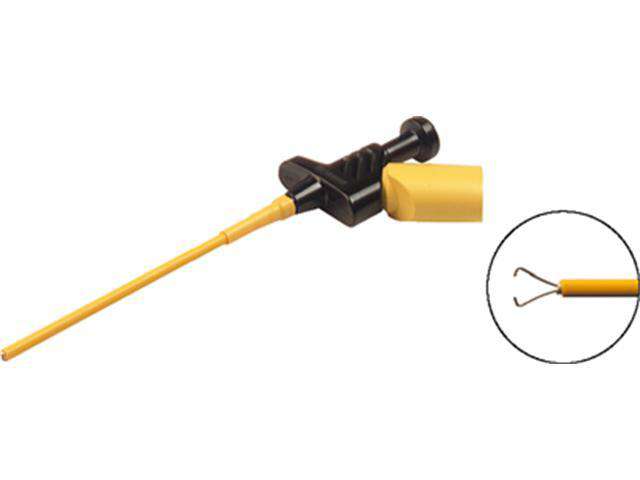

4mm Clamp type Test Probe • Black • Rotating grip jaws Overview Contact-protected clamp-type test probe with rotating grip jaws and flexible shaft. The grip jaws allows clamping of pins and wires up to a max. of 4 mm diameter. Brass 4 mm diameter contact-protected socket connection. Connects with sliding sleeve measuring leads. Features Rotating grip jaws Specification connection unsprung socket 4 mm rated voltage (1) 30 VAC / 60 VDC measurement cat. acc. to IEC 61010 O (3) rated current (1) (consider derating curve) 4 A material socket brass housing material PA temperature range acc. To IEC61010 (2) -25 °C to +70 °C inflammability class acc. to UL 94 (only valid for basic material of housing) V-0 clamp type rotating grip jaws, tin plated clamping range 4 mm standard IEC 61010 (1) for normal environmental conditions -5°C to +40°C (2) contact the manufacturer for applications at deviating temperature ranges (3) without rated measurement category, for other circuits that are not directly connected to mains Downloads Datasheet Download
