Product Details

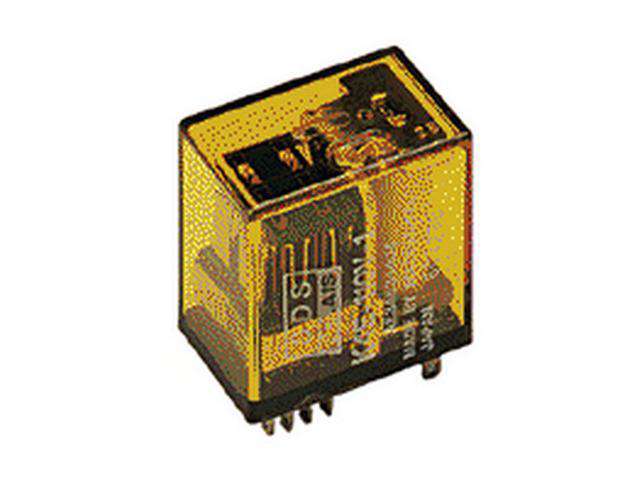

Medium Power Relay • Form 6C • VCoil= 48V DC • IMax Switching= 1A • RCoil= 1.7kΩ • Plug-In • Vertical Case
Overview
Features
- Bifurcated Contacts
Specification
| Contact Form | Form 6C |
| Size Category | Std Size |
| Size | 35x19x30mm |
| Termination | Plug-In |
| Coil Rated Voltage | 48V |
| AC/DC Voltage | DC |
| Max. Switching Current | 1A |
| Electrical Rating | 2A/220VAC/VDC |
| Coil Power | 1.36W Power |
| Coil Resistance | 1.7kΩ |
| Isolation Voltage | 750V |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 20 Pin(s) |
| No. of Poles | 6 Pole(s) |
