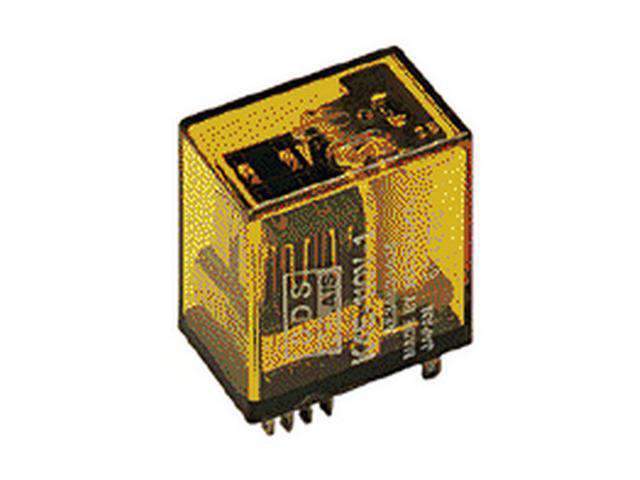

Medium Power Relay • Form 4C • VCoil= 24V DC • IMax Switching= 1A • RCoil= 1.1kΩ • Plug-In • Vertical Case
Bifurcated Contacts
| Contact Form | Form 4C |
| Size Category | Std Size |
| Size | 29x19x30mm |
| Termination | Plug-In |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 1A |
| Electrical Rating | 2A/220VAC/VDC |
| Coil Power | 500mW Power |
| Coil Resistance | 1.1kΩ |
| Isolation Voltage | 750V |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 14 Pin(s) |
| No. of Poles | 4 Pole(s) |
