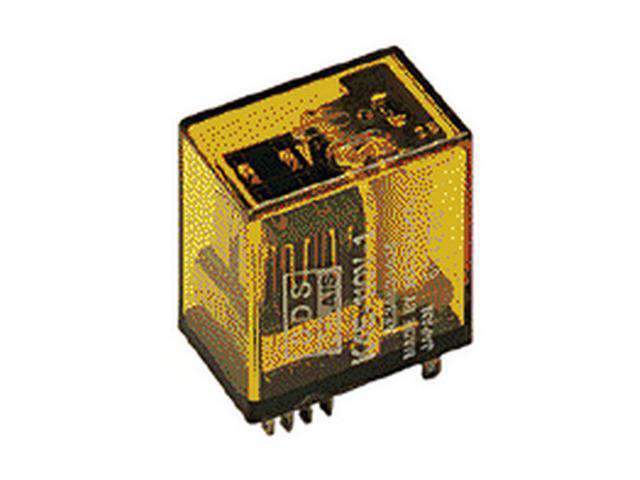

Medium Power Relay • Form 2C • VCoil= 6V DC • IMax Switching= 1A • RCoil= 58Ω • Plug-In • Vertical Case
| Contact Form | Form 2C |
| Size Category | Std Size |
| Size | 24x19x30mm |
| Termination | Plug-In |
| Coil Rated Voltage | 6V |
| AC/DC Voltage | DC |
| Max. Switching Current | 1A |
| Electrical Rating | 5A/220VAC/VDC |
| Coil Power | 600mW Power |
| Coil Resistance | 58Ω |
| Isolation Voltage | 750V |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
