Product Details

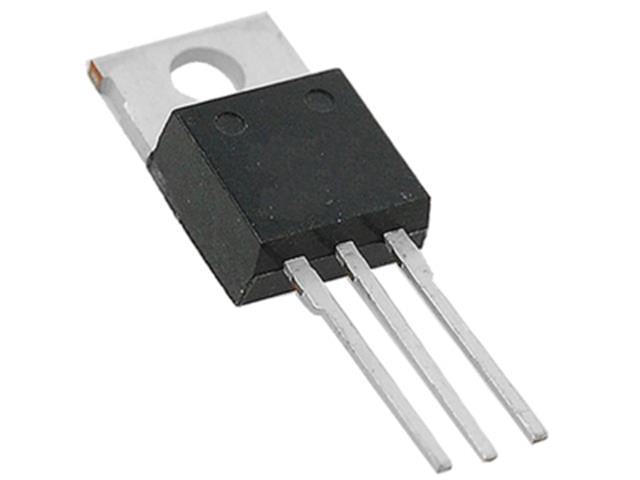

SIP MOS N-CH 500V 2,5A 3R TO220
SIP MOS N-CH 500V 2,5A 3R TO220
Specifications
|
FET Type
|
N-Channel |
|
Technology
|
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss)
|
500 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
2.5A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
Rds On (Max) @ Id, Vgs
|
3Ohm @ 1.5A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
24 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
360 pF @ 25 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
50W (Tc)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
TO-220AB
|
|
Package / Case
|
TO-220-3 |
