Product Details

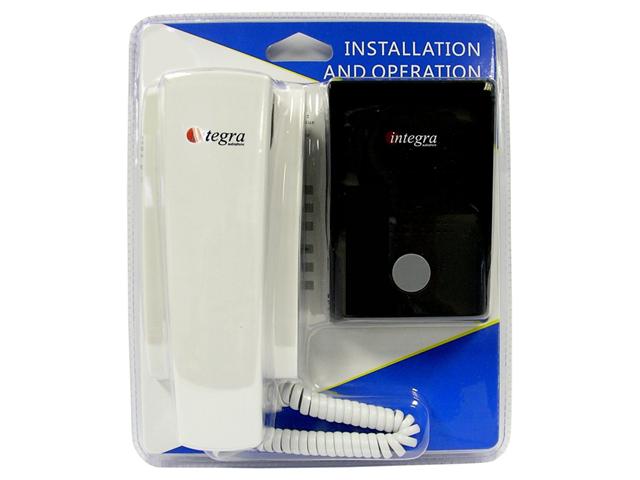

Audio Door Phone Kit , consists of 1 x Audio Outdoor unit and 1 x Indoor Handset
Features
- Opening the electric lock
- Tamper Sensor in outdoor station (tamper) : The outdoor station has a tamper sensor, that is, if outdoor station is violated, an audible alarm will always sound both in indoor phone and outdoor station. The alarm sound is similar to the bell
- 4-wire installation
- Up to 3 extensions (indoor phones)
- Allows installation of EXIT buttons to open the lock.(connect to cable “GND” and “Signal’)
- EXIT Button : If you have EXIT button installed at any place, simply press it for more than 1 second to open the lock
Specifications
- Outdoor :
- Operating voltage : DC 12V (powered by indoor phone)
- Lock : 12V/1A
- Room Temperature : -10~+60°C
- Humidity : 10%~90% no condensing
- Dimension : 129x88x51mm
- Indoor :
- Power Supply : 119~240ACV 50/60HZ automatic
- Volume of buzzer : 80dB ±2 @ 1m
- Room Temperature : -10~+60°C
- Humidity : 10%~90% no condensing
- Dimension : 188x82x56mm
- Power Consumption : 5W
- Cabling :
- Before installing the product, check the distance between indoor and outdoor and choose the most suitable cable for your installation according to the specification below:
- 0.4mm2 mm2 up to 30m
- 0.5mm2 up to 50m
- 0.75mm2 up to 100m
- 1.5mm2 up to 200m
- To install the lock, always use 1.5mm2 cable for distances up to 50m
- To connect the outdoor station to the indoor phone, use 1.52 cable
Additional Information
| Device | Door Phone Kit |
| Type | Audio |
