Product Details
Indoor Wireless PIR Detector, Detecting Range: 12m Max, Wireless Distance: No Obstacle 80m Line of Sight, 3V DC Dry Battery (2 * AAA), Detecting Angle 110 Degrees Horiz, 60 Deg Vertical

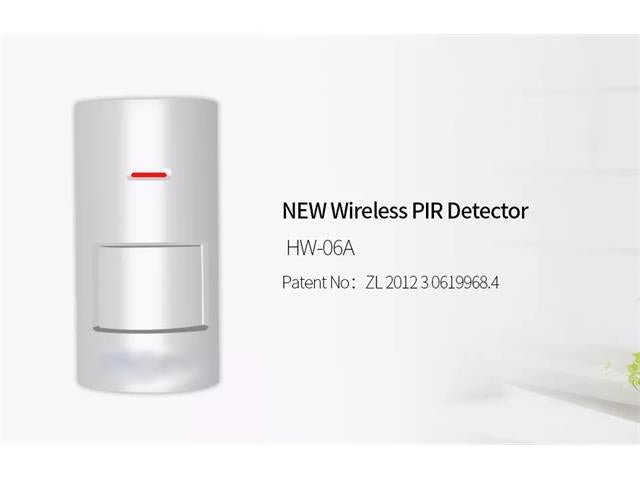

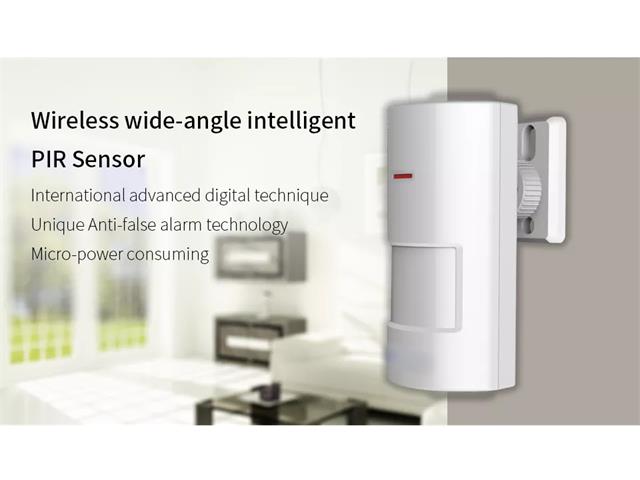

Indoor Wireless PIR Detector
Features
- This product is a special home and business PIR detector with delicate and modern design, adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and anti-strong light function and avoid false alarm.
- High technology to distinguish interference and motion signal;
- Re-detecting time adjustable: extend life span of the battery;
- Low standby current (30uA) to extend the battery life;
- Tamper alarm function: send signal to the control panel when the cover is open;

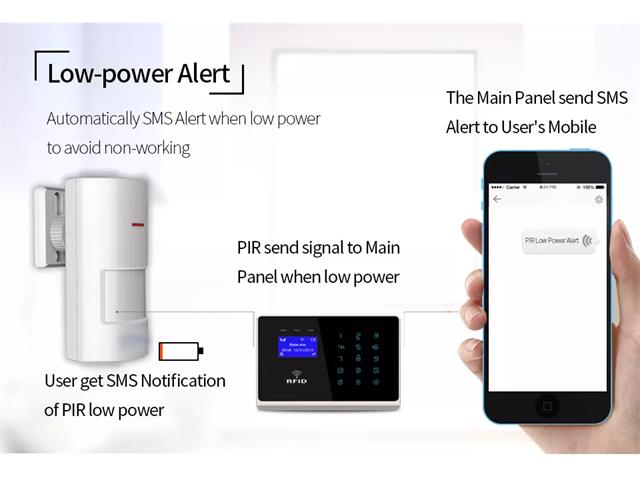

- Low power alert function: inform users to change batteries in time.
Specifications
|
Sensor
|
Passive IR sensor |
|
Working voltage
|
DC6V (4pcs AAA 1.5V dry batteries) |
|
Static current
|
<30uA |
|
Alarm current
|
15mA |
|
Transmitting frequency
|
315/433+0.5MHZ |
|
Transmitting distance
|
no obstacle 80M |
|
Detecting distance
|
12M max |
|
Detecting angle
|

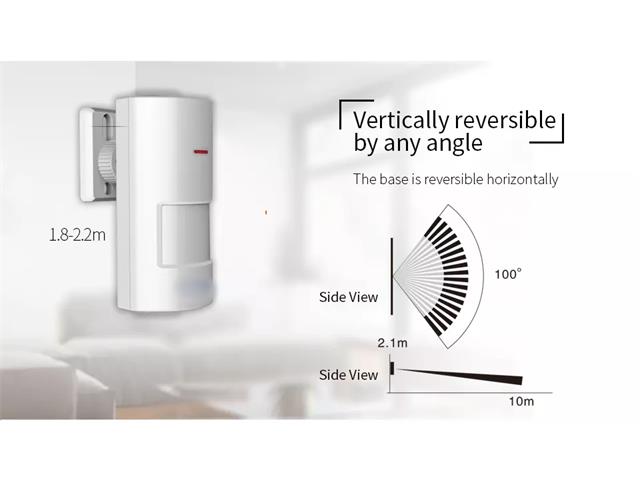

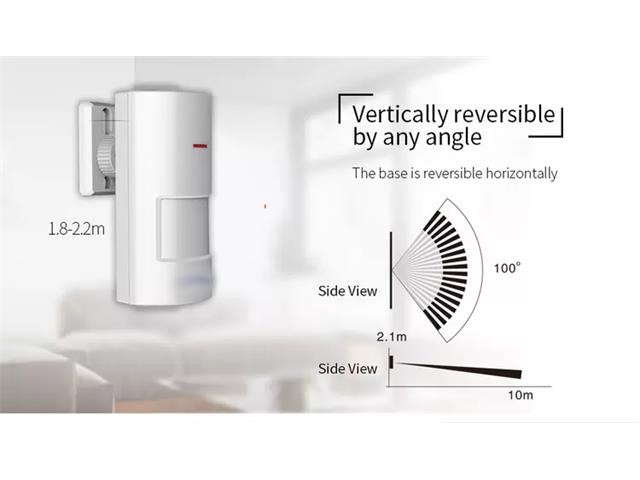

Horizontal 110°, Vertical 60° |
|
Working Temperature
|
+0~+45℃ |
|
Coding method
|
PT2262 or EV1527 optional |
Additional Information
| Device | Detector |
| Type | Indoor | Wireless | PIR |
