Product Details

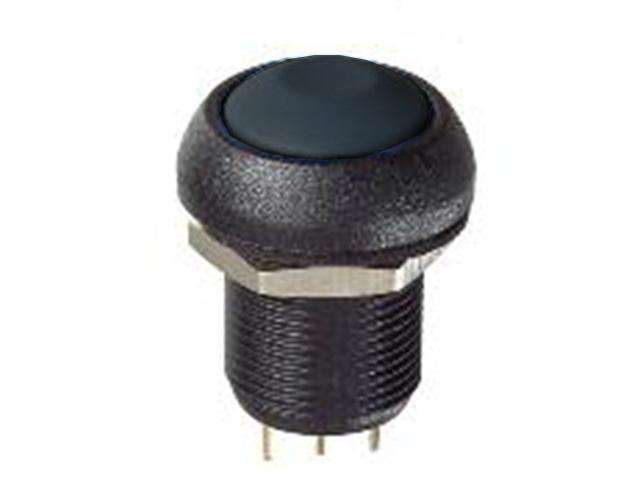

3A 28VDC IP67 Sealed Snap Action Pushbutton Switch with 12mm Diameter Bushing and Round Black Actuator
Overview
Features
Â
- Snap-action : tactile feedback with audible click
- High current/voltage rating
- Sealed to IP67
- Flat round actuator for optional marking
Specification
Â
Environmental Specifications
- Front Panel Sealing : IP67 according to IEC 60529
- Shock Resistance : 50g - 11ms according to IEC 68-2-27
- Salt Spray : IEC 512-6, test 11f
- Operating Temperature : -40°C to +85°C
- Storage Temperature : -40°C to 85°C
Electrical Specifications
- Max. current/voltage rating with resistive load : 3A 28VDC
- Initial Contact Resistance : 100 mΩ max.
- Insulation Resistance : 1 GΩ min. at 500VDC
- Dielectric Strength : 500 Vrms between terminals
- Electrical Life at Full Load : 25.000 cycles
General Specifications
- Panel Thickness : 1.5 mm (.059) to 10 mm (.394)
- Total Travel : 1.7 mm (.067) ±0,3 mm
- Low Level or Mechanical Life : 1.000.000 cycles
- Torque : 1.5 Nm ma
| Transition Style | Momentary |
| Actuator Style | Push Button |
| Termination | Straight PC |
| Switch Circuit | NO+NC |
| Electrical Rating | 3A 24VDC |
| Actuator Colour | Black |
| IP Rating | IP67 |
