Product Details
IMOU WiFi 8CH NVR with 4 Bullet 2 Cameras Full Color 2MP 2.8mm Lens, 30M IR, Built-In Mic & SPKR, Siren, NVR 4CH@1080P 25fps, H2.65/2.64, Built-In 1TB HDD, 1xRJ45 PORT 10/100Mbs, VGA/HDMI, 2xUSB Ports, 40Mbps Wired, 16Mbps WiFi, IP67

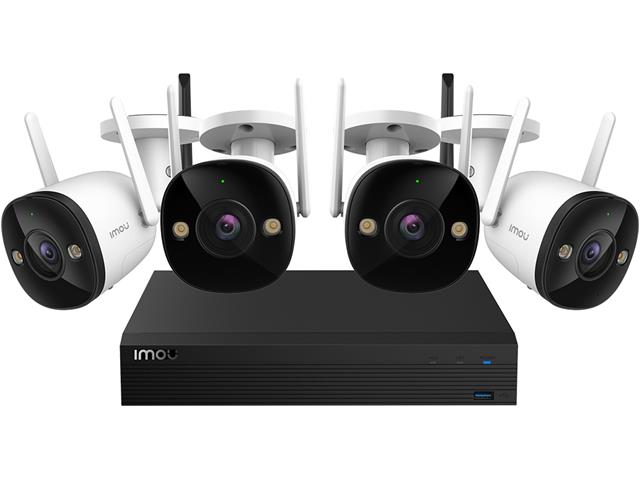

8 Channel Wi-Fi NVR With 4 Bullet 2 Cameras
Feature(s)
- 4pcs 1080P cameras
- Built-in Mic
- IR Night Vision
- IP67 Weather Proof
- Automatic pairing
- Wi-Fi connection with External Antenna
- H.264Codec
- Max.1080P HDMI/VGA out
- Build-in 1TB 3.5inch HDD
Specifications
Camera
- 1/2.8”2 Megapixel Progressive CMOS
- 2MP(1920 x 1080)
Night Vision: 30m(98ft) Distance
2.8mm/3.6mm/6mm Fixed Lens
Field of View: 2.8mm; 102°(H), 54°(V), 120°(D)
6mm: 53°(H), 30°(V), 60°(D)
3.6mm: 89°(H), 46°(V), 108°(D)
Network
- Wi-Fi:IEEE802.11b/g/n, Dual Antenna
ONVIF
1 x 100Mbps Ethernet Port
Imou App: iOS, Android
Video & Audio
- Video Compression : H.265/H.264
Up to 25/30 fps Frame Rate
8x Digital Zoom
Built-in Mic
Auxiliary Interface
- Micro SD Card Slot (up to 256GB)
Reset Button
Notice Management
- Motion Detection
Configurable Region
Human Detection
General
- DC 12V0.5A Power Supply
Power Consumption:<3.5W
Working Environment:-30°C~+60°C, Less Than 95%RH
CE, FCC
IP67
Material: Plastic
Dimensions: 147.7 × 74.2 × 74.2mm (5.8 × 2.9 × 2.9inch)
Weight: 244g (0.54lb)
NVR SPECIFICATIONS
System
- IP Camera Input: 4/8 Channels
- Wired Max. Input: 40Mbps
- Wireless Max .Input: 16Mbps
- Operation Display: WEB/GUI/Imou APP
Recoding & Decoding
- Resolution: 1080P/720P
- Max Decoding: 1ch@6MP/2ch@4MP/4ch@1080P/8ch@720P
- Compression: H.265+/H265/H.264+/H.264
- Audio Compression: G.711A/G.711U/PCM/G726
Video
- Video In: 4/8 Channels
- Video Out: 1 HDMI/1 VGA
Function
- Recoder Mode: Manual/Alarm/Motion detection/Schedule
- Backup Mode: USB Device
- Playback: 1/4
- Storage: Up to 8TB HDD/Cloud Storage
- Multi-screen Display: 4ch: 1/4
8ch: 1/4/8/9
Network
- ONVIF Profiles T/S/G, CGI, SDK
- imou App: iOS, Android
- Wi-Fi: IEEE802.11b/g/n, 100m Open Field
- Internal Dual-antenna, 2×2 MIMO
General
- Power Supply: DC12V 1.5A
- Power Consumption: ≤10W(without HDD)
- Operationg Conditions: -10℃～+45℃(+14℉~+104℉)
- 10℅～90℅RH
- Dimensions(W×L×H): 260.3mm×247.3mm×44.7mm
- (10.25″ ×9.74″ ×1.76″ )
- Net Weight: 0.824kg(1.82lb)
- Certification: CE/FCC

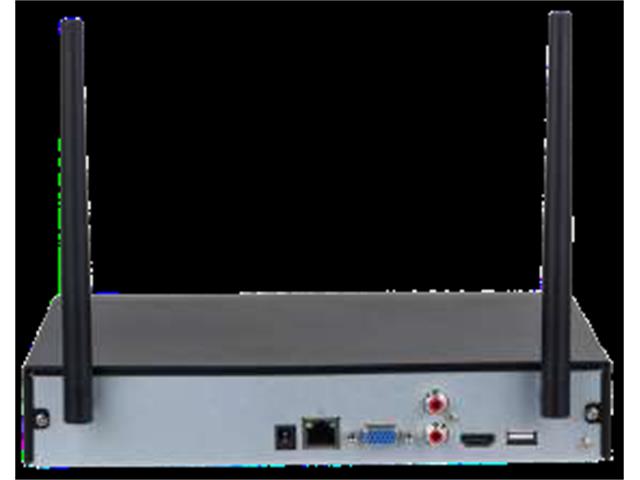

Auxiliary Interface
- 2 x USB Ports
- 1 x SATA Port
- 1 x Network Port
- 1 x RCA In
- 1 x RCA Out
- 1 x HDMI Port
- 1 x VGA Port
- 1 x Power Port
Downloads
Additional Information
| Device | Cameras/NVR |
| Type | 8 Channel | Wi-Fi | 4 Bullet |
