Product Details
Key Switch Standard Round 19mm SPST Key Pull 1 Off On Spade Terminals 2A 250VAC

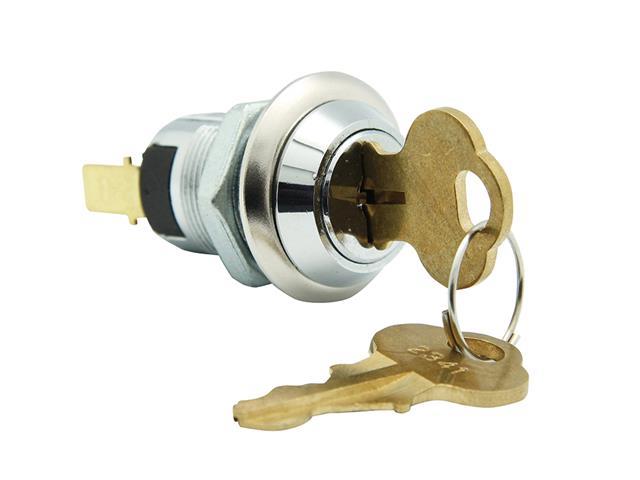

Standard Round 19mm SPST Key Switch
Feature(s)
- Zinc alloy die cast housing and cylinder.
- Bright chrome plated standard.
- 11 disc tumbler mechanism.
- Double-bitted brass keys.
- Key may be withdrawn in one or both positions.
- 2 position (off-on), S203A is spade terminals
- Hex nut mounted.
Specifications
- Contact Rating: 2A 250VAC
- Contact Resistance: 50Milli-Ohms Max
- Insulation Resistance: 109 Ohm Min
- Dielectric Strength: 1000 VAC -1 Minute
- Size : 19mm
Additional Information
| Device | Key Switch |
| Type | Standard | Round | 19mm | SPST |
