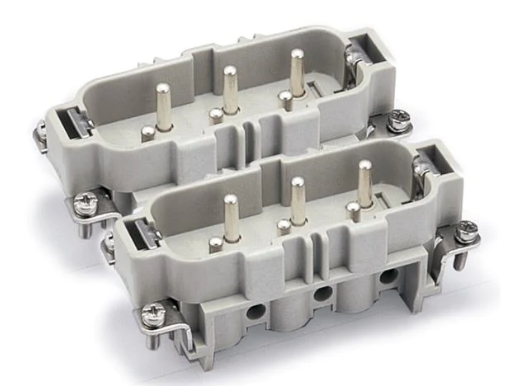

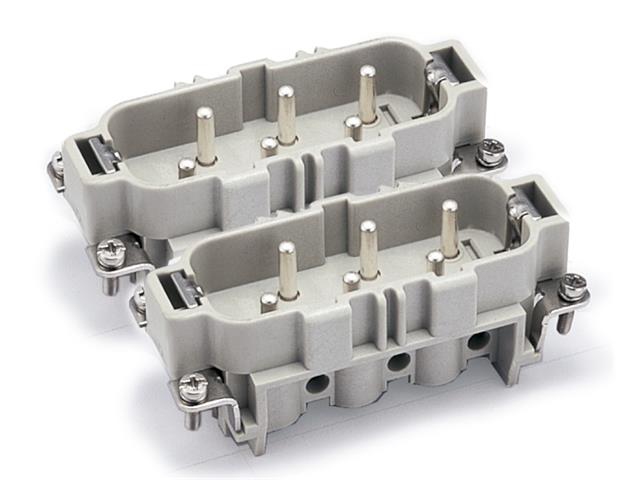

Series 12HsB Insert 6P+E - Size 32B - Male Screw Termination w/Wire Protection 35A/400/690V -Numbered 7- 12
Article No. 127 006 011 0002
Industry No. 09310062611
Size: 32B
Series: 12HsB
Datasheet HSB-006-M (7-12)
SPECIFICATIONS
| Inserts | |
| Number of contacts | 12(2x6)+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 35A |
| ---Rated voltage conductor - ground | 400V |
| ---Rated voltage conductor - conductor | 690V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---or | 35A 500V 6kV 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.5-6mm² |
| ---AWG | 10 |
| ---Tightening torque | 1.2Nm |
