HSB-006-F (7-12)

HSB-006-F (7-12)

Dhs. 101.16
Dhs. 101.16
Sold out

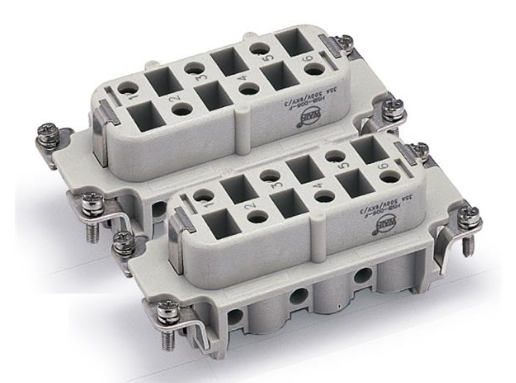

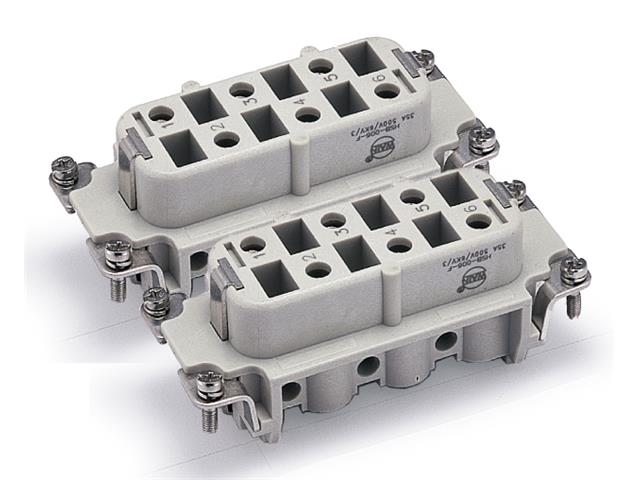

Series 12HsB Insert 6P+E - Size 32B -  Female Screw Termination w/Wire Protection 35A/400V/690V -Numbered 7- 12
Article No. 127 006 021 0002
Industry No. 09310062711
Size: 32B
Series: 12HsB
Datasheet HSB-006-F (7-12)
Inserts
Number of contacts 12(2x6)+PE
Electrical data acc. to EN 61 984
---Rated current 35A
---Rated voltage conductor - ground 400V
---Rated voltage conductor - conductor 690V
---Rated impulse voltage 6kV
---Pollution degree 3
---or 35A 500V 6kV 3
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 1.5-6mm²
---AWG 10
---Tightening torque 1.2Nm

ACCESSORIES

Please Click here to view list of Accessories for size 32B
