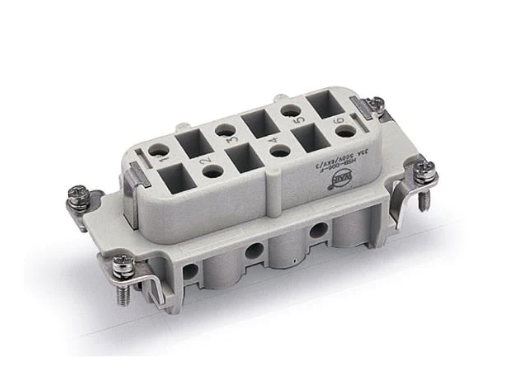

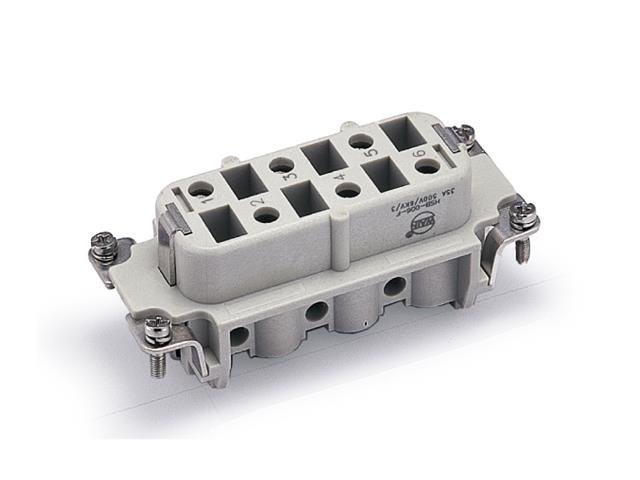

Series 6HsB Insert 6P+E - Size 16B - Female Screw Termination w/Wire Protection 35A/400V/690V
SPECIFICATIONS
| Inserts | |
| Number of contacts | 6+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 35A |
| ---Rated voltage conductor - ground | 400V |
| ---Rated voltage conductor - conductor | 690V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---or | 35A 500V 6kV 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.5-6mm² |
| ---AWG | 10 |
| ---Tightening torque | 1.2Nm |
