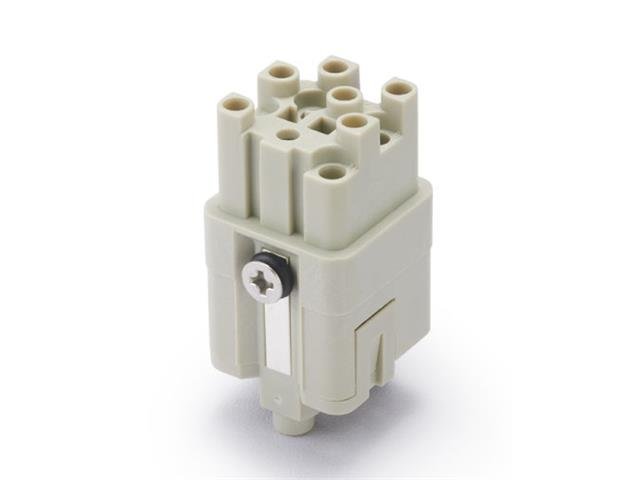

Series Q12/0 (C) Insert 12P+E - Size 3A - Female Crimp Termination 10A/400V
Article No. 130 012 020 0001
Industry No. 09120123101
Size: 3A
Series: Q12/0 (C)
Datasheet HQ-012/0-FC
SPECIFICATIONS
Ferrule | |
Connector pin count | 12+PE |
Electrical data according to DIN EN 61984 | |
-Rated current | 10A |
- rated voltage | 400V |
- Rated impulse voltage | 6KV |
- pollution level | 3 |
Voltage rating according to UL/CSA | 600V |
Insulation resistance | ≥1010Ω |
Material | polycarbonate |
range of working temperature | -40℃...+125℃ |
Flame retardant grade (UL94) | V0 |
Pluggable times | ≥500 |
pin | |
Material | copper alloy |
surface treatment | silver plated gold plated |
Contact resistance | ≤3mΩ |
cold press connection | |
---mm2 | 0.14-2.5mm2 |
---AWG | 26-14 |
PE screw connection | |
---mm2 | 0.5-2.5mm2 |
---AWG | 20-14 |
