Product Details

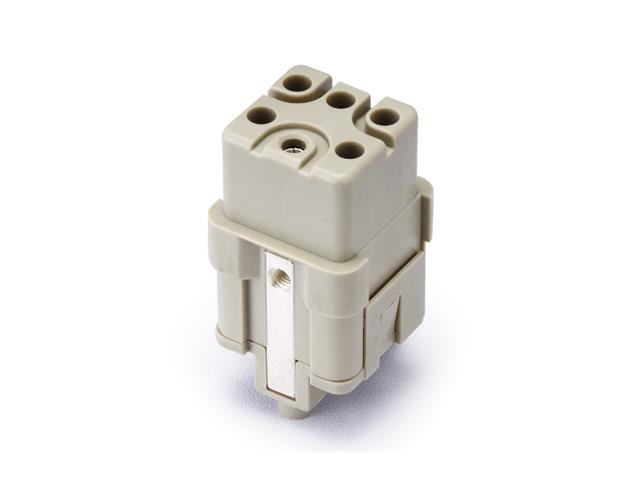

Series Q5/0 (C) Insert 5P+E - Size 3A - Female Crimp Termination 16A/230V/400V = 09120053101
Series Q5/0 (C) Insert 5P+E
Specifications
Product parameters
| Inserts | |
| Number of contacts | 5+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor -ground | 230V |
| ---Rated voltage conductor -conductor | 400V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 320/500V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---mm2 | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| PE screw terminal | |
| ---mm2 | 2.5mm2 |
| ---AWG |
14 |
Downloads
Additional Information
| Device | Insert |
| Type | Series Q5/0 (C) | 5P+E | Size 3A |
