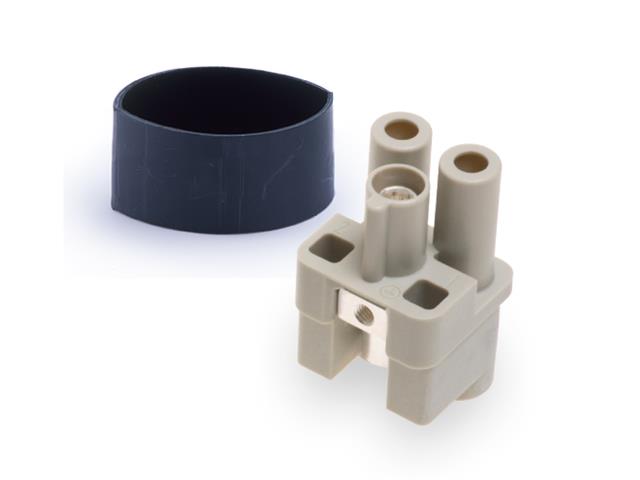

Series Q2/0 Insert 2P+E - Size 3A - Female Axial Screw Termination w/Heatshrink Tube 40A/830V for 4-10mm sq. Wire
Article No. 130 002 021 0002
Industry No. 09120022752
Size: 3A
Series: Q2/0
Datasheet HQ-002.2-F (4-10mm2)
SPECIFICATIONS
Inserts | |
Number of contacts | 2+PE |
Electrical data acc. to EN 61 984 | |
---Rated current | 40A |
---Rated voltage | 830V |
---Rated impulse voltage | 6kV |
---Pollution degree | 3 |
Rated voltage acc. to UL | 600V |
Insulation resistance | ≥1010Ω |
Material | polycarbonate |
Limiting temperatures | -40℃...+125℃ |
Flammability acc. to UL 94 | V0 |
Mechanical working life(mating cycles) | ≥500 |
Contacts | |
Material | copper alloy |
Surface | hard-silver plated |
Contact resistance | ≤1mΩ |
Axial screw termination | |
---mm2 | 2.5-10mm2 |
---AWG | 14-8 |
Tightening torque | 1.8Nm |
Stripping length |
8+1mm |
