HQ-002.1-M (2.5-6.0mm2)

HQ-002.1-M (2.5-6.0mm2)

Regular price
Dhs. 65.34
Regular price
Sale price
Dhs. 65.34
Unit price
per
Availability
Sold out

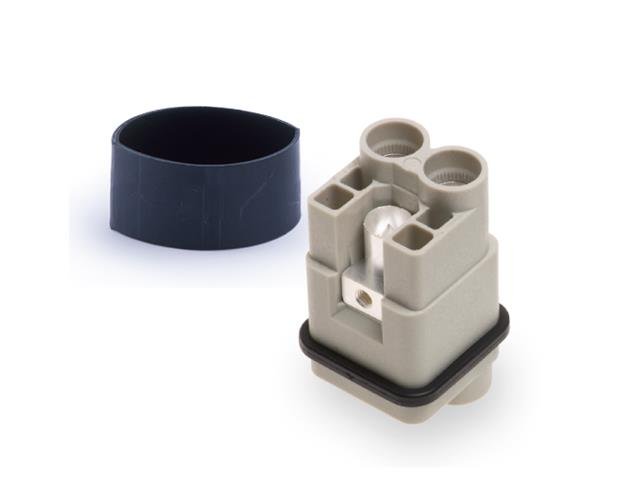

Series Q2/0 Insert 2P+E - Size 3A -  Male Axial Screw Termination w/Heatshrink Tube 40A/830V for 2,5-6mm sq. Wire
Article No. 130 002 011 0001
Industry No. 09120022654
Size: 3A
Series: Q2/0
Datasheet HQ-002.1-M
Inserts
Number of contacts 2+PE
Electrical data acc. to EN 61 984
---Rated current 40A
---Rated voltage 830V
---Rated impulse voltage 6kV
---Pollution degree 3
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance ≤1mΩ
Axial screw termination
---mm2 2.5-10mm2
---AWG 14-8
Tightening torque 1.8Nm
Stripping length

8+1mm


ACCESSORIES

Please Click here to view list of Accessories for Size 3A
