Product Details

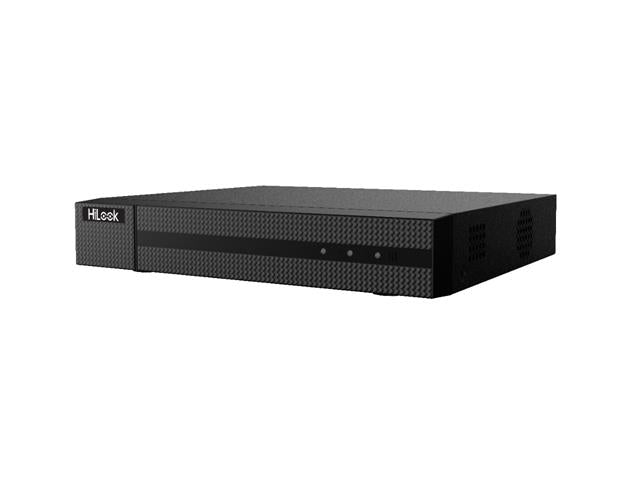

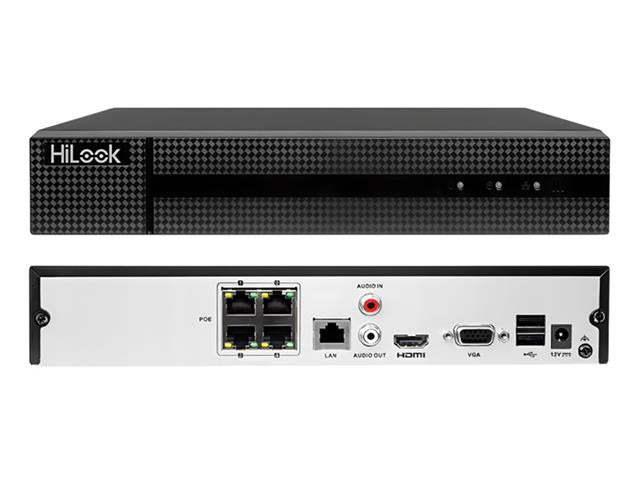

HiLook 4CH 1U PoE NVR H2.65+ 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF, 1 SATA Iinterface (up to 8TB Capacity), 1xRJ45 10/100Mbps, 2×USB2.0, VGA, HDMI Video Output at up to 4K Resolution, 48VDC 1.35A
4CH 1U PoE NVR
Feature(s)
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 40 Mbps incoming bandwidth
Specifications
Video and Audio
- IP Video Input : 4-ch
- HDMI Output : HDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
- VGA Input : 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz
- Incoming Bandwidth : 40 Mbps
- Outgoing Bandwidth : 80Mbps
- Audio Output : 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
- Decoding Format : H.265+,H.265,H.264+,H.264,MPEG4
- Decoding Capability : 1-ch @ 8 MP / 4-ch @ 1080p
- Synchronous playback : 4-ch
- Recording Resolution : 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
- Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface : 4-ch
- Power : ≤ 50 W
- Standard : IEEE 802.3 af/at
RAID
- RAID Type : No
Auxiliary Interface
- SATA : 1
- Capacity : Up to 8TB capacity for each disk
- USB Interface : × USB 2.0
General
- Power Supply : 48 VDC, 1.35 A
- Consumption : ≤ 10 W (without enabling PoE)
- Working Temperature : -10 to +55° C (14 to 131° F)
- Working Humidity : 10 to 90 %
- Chassis : 1U
- Dimension (W × D × H) : 65 × 225 × 48 mm (10.2" × 8.9" × 1.9")
- Weight : ≤ 1 kg (2.2 lb)
Downloads
Additional Information
| Device | NVR |
| Type | 4CH | 1U | PoE |
