• High quality imaging with 4 MP resolution
• 24/7 colorful imaging
• Support Human and Vehicle Detection
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology

Camera

• Image Sensor : 1/3" Progressive Scan CMOS
• Max. Resolution : 2560 × 1440
• Min. Illumination : Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time : 1/3 s to 1/100,000 s
• Day & Night : 24/7 color imaging
• Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type : Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV : 2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
• Lens Mount : M12
• Iris Type : Fixed
• Aperture : F1.0
• Depth of Field : 2.8 mm: 2 m to ∞

DORI

• DORI : 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m

Illuminator

• Supplement Light Type : White Light
• Supplement Light Range : Up to 30 m
• Smart Supplement Light : Yes

Video

• Main Stream
• 50 Hz:
• 20 fps (2560 × 1440)
• 25 fps (1920 × 1080, 1280 × 720)
• 60 Hz:
• 20 fps (2560 × 1440)
• 24 fps (1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression
• Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile,Main Profile,High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR,VBR
• Region of Interest (ROI) : 1 fixed region(s) for main stream

Network

• Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
• User/Host
• Up to 32 users
• 3 user levels: administrator, operator, and user
• Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Client : iVMS-4200,HiLookVision
• Web Browser
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR) : 120 dB
• SNR : ≥ 52 dB
• Day/Night Switch : Day,Night,Auto,Schedule
• Image Enhancement : BLC,HLC,3D DNR
• Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask : 4 programmable polygon privacy masks

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP, send email, notify surveillance center, trigger capture

General

• Power
• 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Material : Aluminum alloy body
• Dimension : Ø76.6 mm × 164.4 mm (Ø3 × 6.5\")"
• Package Dimension : 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
• Weight : Approx. 425 g (0.9 lb.)
• With Package Weight : Approx. 633 g (1.4 lb.)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language : English, Ukrainian
• General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email

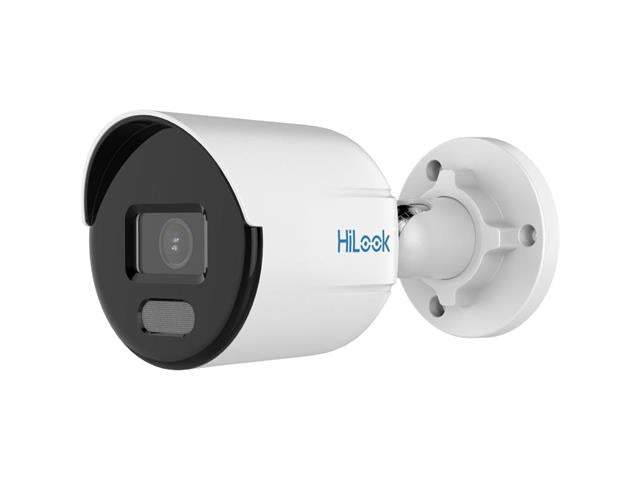

1. Datasheet - HLK IPC-B149HA 2.8MM
