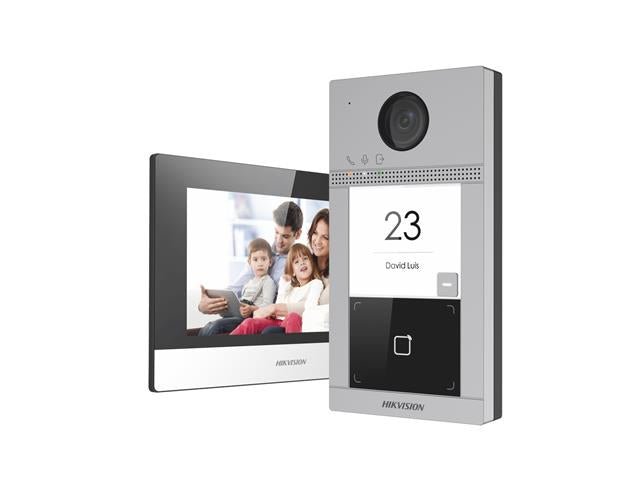

• IP video intercom kit for villa or house
• One call button for easier calls
• Convenient Hik-Connect APP Mobile Control
• Stores messages and captured pictures in the TF card
• Including: DS-KV8113-WME1(C) × 1, DS-KH6320-WTE1 × 1, PSU × 2, 16 GB TF card × 1
• Power adapter included in the package

  • IP video intercom kit for villa or house, only one call button.
  • DS-KV8113-WME1(C) x1
  • DS-KH6320-WTE1 x1
  • PSU x2
  • 16GB TF card x1

Door station

System parameters
Operation system : Embedded Linux operation system
Flash : 32 M
RAM : 256 M

Video parameters

Supplement light : IR supplement
Resolution

Main stream : 1920 × 1080
Sub stream : 640 × 480

Lens : 1
WDR : Support
FOV : Horizontal: 124° Vertical: 75°
Video compression standard : H.264

Audio parameters

Audio input : Built-in omnidirectional microphone
Audio output : Built-in loudspeaker (more than 80 dB within 30 cm)
Volume adjustment : Adjustable
Audio compression standard : G.711 U, G.711 A
Audio compression Rate : 64 Kbps
Audio intercom : Two-way audio communication
Audio quality : Noise suppression and echo cancellation

Capacity parameters

User capacity : 2000

Network parameters

Network protocol : TCP/IP, RTSP
Wi-Fi : Wi-Fi 802.11 b/g/n
Wired network : 10/100 Mbps self-adaptive Ethernet

Device interface

Network interface : 1
RS-485 : 2
Lock control : 2
Exit button : 2 Max.
Door contact : 2
Alarm input : 4
Power interface : 1
TAMPER : 1
TF card : 1 (reserved)

General

Button : 1

Power consumption : < 10 W
Indicator : 3
Working temperature : -40° C to 53° C(-40° F to 127.4° F)
Power supply : Standard PoE/12 VDC
Working humidity : 10% to 95%
Dimension 174 mm × 91 mm × 29 mm
Installation : Surface mounting
Application environment : Outdoor
Protection level : IP65, IK08
Weight : 380 g
Indicator : 3
Power supply

IEEE802.3af, standard PoE
12 VDC

Indoor station System parameters

Operation system : Embedded Linux operation system
Memory : 128 MB
Flash : 32 MB

Display parameters

• Display screen : 7-inch colorful TFT screen
• Display resolution : 1024 × 600
• Operation method Capacitive touch screen

Audio parameters

• Audio input : Built-in omnidirectional microphone
• Audio output : Built-in loudspeaker
• Audio quality : Noise suppression and echo cancellation
• Audio compression standard : G.711 U
• Audio compression Rate : 64 Kbps

Network parameters

• Wired network : 10/100 Mbps self-adaptive
• Network interface : 1 RJ-45 10/100 Mbps self-adaptive
• Wireless network : Wi-Fi 802.11 b/g/n
• Protocol : TCP/IP, SIP, RTSP

Device interface

• RS-485 : 1
• Alarm input : 8-ch alarm inputs
• Relay output : 2
• TF card Max to 32 G, SD 2.0 or lower version

General

• Power consumption : ≤ 6 W
• Power supply : Standard PoE,12VDC
• Working temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity : 10% to 90%
• Dimension (L x W x H) : 200 mm × 140 mm × 15.1 mm (7.9"" × 5.5"" × 0.6"")
