Product Details
Hikvision Fixed Bullet Wi-Fi Network EXIR Camera 2MP 2.8mm Lens, 30M IR, 1/2.7"CMOS, Res:1920 x 1080, 3D DNR, 2 Antennas, 32Kbps~8Mbps ,1xRJ45 10M/100M , Built-in Mic & Speaker, Micro SD Card Slot Up to 512GB, 12VDC 0.5A, IP66

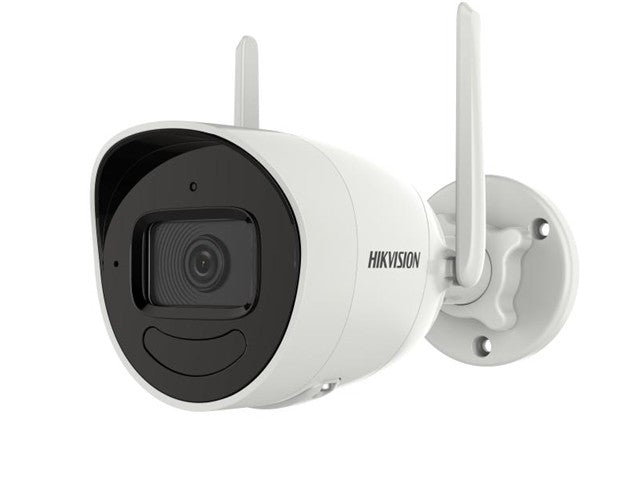

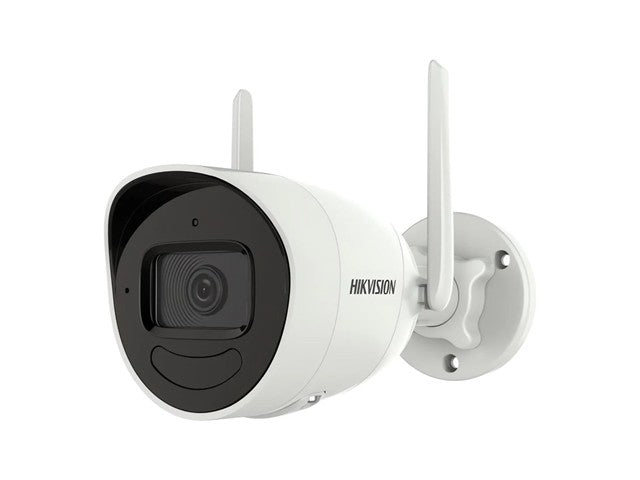

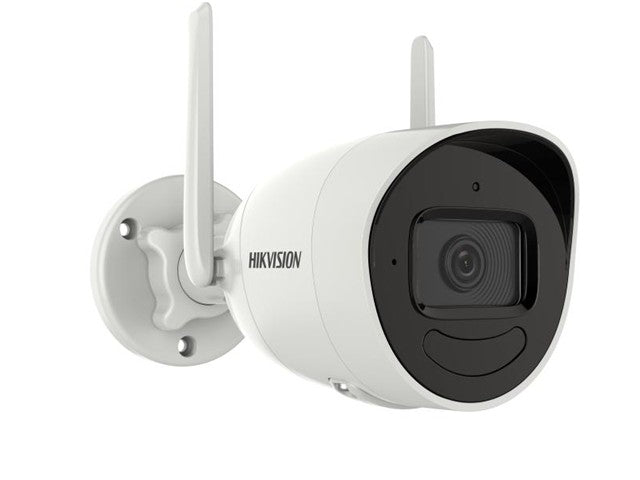

Fixed Bullet Wi-Fi Network EXIR Camera
Feature(s)
- High quality imaging with 2 MP resolution
- Realizing Wi-Fi connection and easy installation
- Provides real-time security via built-in two-way audio
- EXIR 2.0, advanced infrared technology with long IR distance
- Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP66)
Specifications
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/25 s to 1/10000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm: H 100°, V 55°, D 122° |
| Aperture | F1.6 |
| Iris Type | Fixed |
| Lens Mount | M12 |
| Depth of Field | 2.8 mm: 1 m–∞ |
| DORI | |
| 2.8 mm | D: 42 m, O: 17 m, R: 9 m, I: 4 m |
| 4 mm | D: 52 m, O: 21 m, R: 11 m, I: 5 m |
| Illuminator | |
| Supplement Light Type | IR |
| IR Wavelength | 850 nm |
| Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920×1080, 1280×720) 60 Hz: 30 fps (1920×1080, 1280×720) |
| Sub-Stream | 50 Hz: 25 fps (768×432, 512×288) 60 Hz: 30 fps (768×432, 512×288) |
| Compression | Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG |
| Bit Rate | 256 Kbps–2 Mbps |
| H.264 Type | Baseline / Main / High Profile |
| H.265 Type | Main Profile |
| Audio | |
| Compression | G.711, G.722.1, G.726, PCM, AAC-LC |
| Bit Rate | G.711: 64 Kbps G.722.1: 16 Kbps G.726: 16 Kbps MP2L2: 32–160 Kbps AAC-LC: 16–64 Kbps |
| Sampling Rate | 8 kHz / 16 kHz |
| Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, Bonjour |
| Live View | Up to 4 channels |
| API | N/A |
| User/Host | 1 user (administrator) |
| Client | Hik-Connect, iVMS-4200 |
| Web Browser | N/A |
| Wi-Fi | |
| Transfer Rate | 11n: up to 300 Mbps |
| Protocol | 802.11n: OFDM 802.11b: DSSS 802.11g: OFDM |
| Frequency Range | 2.412 – 2.472 GHz |
| Channel Bandwidth | 20 MHz |
| Modulation | 802.11n: BPSK/QPSK/16QAM/64QAM 802.11b: DBPSK/DQPSK/CCK 802.11g: BPSK/QPSK/16QAM/64QAM |
| Wireless Range | Up to 120 m (environment dependent) |
| Antenna | 2 antennas |
| Image | |
| Settings | Auto |
| Day/Night Switch | Auto / Schedule / Day / Night |
| WDR | 80 dB |
| Enhancement | BLC, 3D DNR |
| Interface | |
| Microphone | Built-in |
| Speaker | Built-in |
| Storage | microSD/microSDHC/microSDXC (up to 512 GB) |
| Reset Key | Yes |
| Ethernet | 1 × RJ45 10/100 Mbps self-adaptive port |
| Event | |
| Basic Event | Motion detection (human/vehicle), exception |
| General | |
| Power | 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial plug, reverse polarity protection, adapter included |
| Language | English |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing) |
| General Functions | Heartbeat, mirror, password protection, flash log |
| Material | Front: metal, Back: plastic |
| Dimension | 175.6 × 73 × 89.1 mm (6.9" × 2.9" × 3.5") |
| Package Dimension | 260 × 125 × 125 mm (10.2" × 4.9" × 4.9") |
| Weight | 345 g (0.8 lb) |
| With Package | 635 g (1.4 lb) |
Downloads
Additional Information
| Device | Camera |
| Type | Fixed Bullet | Wi-Fi | Network | EXIR |
