Product Details

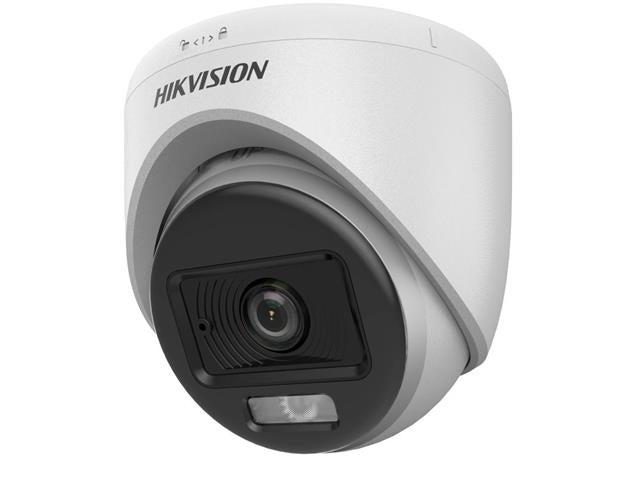

Hikvision Smart Hybrid Light ColorVu Fixed Turret Camera 2MP 3.6mm Lens, 20m IR, PAL/NTSC, Res:1920x1080, 3D DNR, ICR, Lens Mount:M12, STD/HIGH-SAT/HIGHLIGHT, (TVI/AHD/CVI/CVBS), Plastic, Digital WDR, Approx:155g
Smart Hybrid Light ColorVu Fixed Turret Camera
Feature(s)
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid light, optimize your security with flexible lighting options
- 3D DNR technology delivers clean and sharp images
- 3.6 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- Up to 20 m IR distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
Specifications
Camera
- Image Sensor : 2 MP CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Min. Illumination : 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night : ICR
- Angle Adjustment Pan: 0° to 360°,Tilt: 0° to 75°,Rotate: 0° to 360°
- Signal System : PAL/NTSC
Lens
- Lens Type : 3.6 mm fixed focal lens
- Focal Length & FOV : 3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°
- Lens Mount : M12
Illuminator
- Supplement Light Type
- IR,
- White Light
- Supplement Light Range : IR: Up to 20 m,White Light: Up to 20 m
- Smart Supplement Light : Yes
- Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
- Image Settings : Brightness, Sharpness, Anti-banding, AGC
- Frame Rate
- TVI: 1080p @25 fps/30 fps
- CVI: 1080p @25 fps/30 fps
- AHD: 1080p @25 fps/30 fps
- CVBS: PAL/NTSC
- Day/Night Mode : Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR) : Digital WDR
- Noise Reduction : 3D DNR/2D DNR
- White Balance : Auto, Manual
- Image Enhancement
- DWDR,
- BLC,
- HLC,
- Global
Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
- Built-in Microphone : Yes
General
- Material Plastic
- Power : 12 VDC ± 25%, max. 2.9 W,*You are recommended to use one power adapter to supply the power for one camera.
- Dimension : Ø 85.02 mm × 81.25 mm (Ø 3.35" × 3.2")
- Weight : Approx. 155 g (0.34 lb.)
- Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
- Communication : HIKVISION-C
Downloads
Additional Information
| Device | Camera |
| Type | Smart | Hybrid Light | ColorVu | Fixed Turret |
