• High quality imaging with 2 MP, 1920×1080 resolution
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 30 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS）
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• Water and dust resistant (IP67)
• Smart-Hybrid light, optimize your security with flexible lighting options

Camera

• Image Sensor : 2 MP CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• Min. Illumination : 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Time : PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & Night : ICR
• Angle Adjustment : Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
• Signal System : PAL/NTSC

Lens

• Lens Type : 2.8 mm fixed focal lens
• Focal Length & FOV : 2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
• Lens Mount : M12

Microphone

• Pickup Distance : In a radius of 5 m
• Amount : 1

Illuminator

• Supplement Light Type : Smart,IR,White Light
• Supplement Light Range
• IR : Up to 30 m
• White Light : Up to 20 m


• Image Settings : Brightness, Sharpness, Smart IR
• Frame Rate
• TVI: 1080P @ 30 fps, 1080P @ 25 fps
• AHD: 1080P @ 30 fps, 1080P @ 25 fps
• CVI: 1080P @ 30 fps, 1080P @ 25 fps
• CVBS: PAL/NTSC
• Day/Night Mode : Auto/Color
• Wide Dynamic Range (WDR) : Digital WDR
• Image Enhancement : DWDR/BLC/HLC/Global
• White Balance : Auto/Manual
• AGC : Yes

Interface

• Video Output : Switchable TVI/AHD/CVI/CVBS

General

• Material : Metal
• Dimension : 138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3")
• Weight : Approx. 266 g (0.59 lb.)
• Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication : HIKVISION-C
• Language : English
• Power Supply
• 12 VDC ± 25%
• *You are recommended to use one power adapter to supply the power for one camera.
• Consumption : Max. 3.3 W

Approval

• Protection : IP67

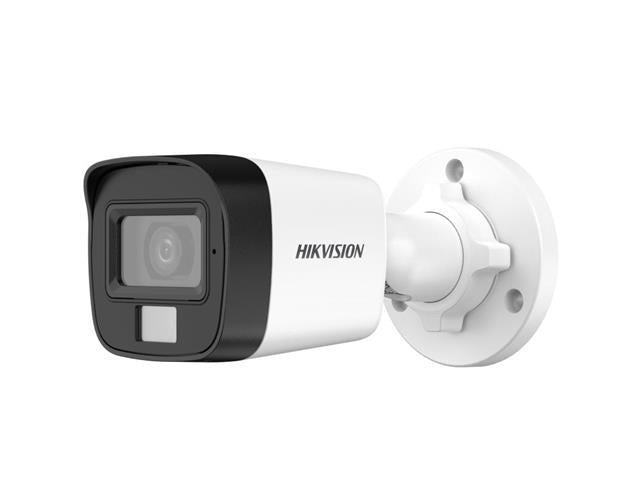

1. Datasheet - HKV DS-2CE16D0T-LFS (2.8MM)
