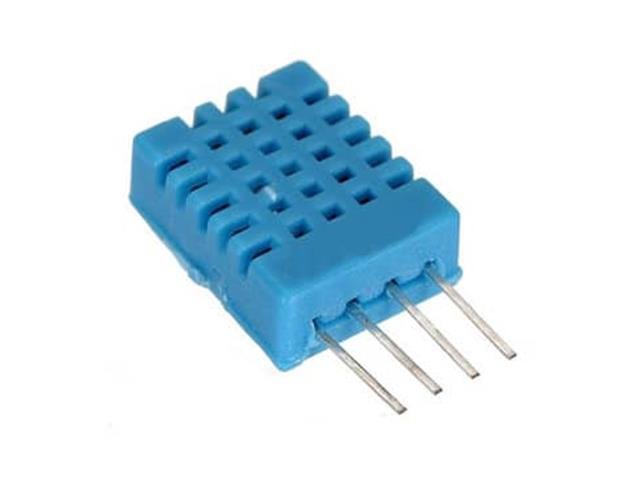

ORIGINAL ASAIR DHT11 Digital Temperature And Humidity Sensor
Digital Temperature And Humidity Sensor
Overview
This module includes a DHT11 Temperature & Humidity Sensor. It features a temperature & humidity sensor complex with a calibrated digital signal output. By using the exclusive digital-signal-acquisition technique and temperature & humidity sensing technology, it ensures high reliability and excellent long-term stability.
Pin Connection
Connect the + pin to 5v and – pin to GND, Signal pin will output the temperature and humidity information. If you are using arduino connect this pin to Ao
Specifications
- Humidity measuring range: 20%~90%RH(0~50 degree (temperature compensation).
- Temperature measuring range: 0~+50degree.
- Humidity measurement accuracy: ±5.0%RH.
- Temperature measurement accuracy: ±2.0degree.
- Response time: <5s
- Low power consumption.
- Relative humidity and temperature measurement
- All calibration, digital output
- Excellent long-term stability
Additional Information
| Device | Sensor |
| Type | Digital | Temperature | Humidity |
