Product Details
TB6560 3A Stepper Motor Driver Board Single-Axis. VSS=10-35VDC. Low Voltage Shutdown and Over Current Protection

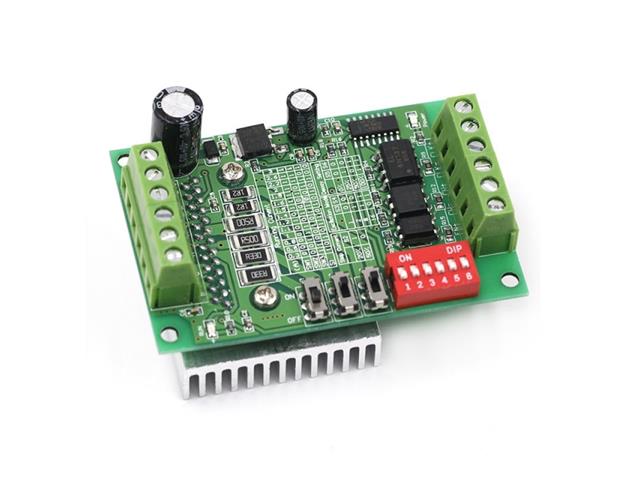

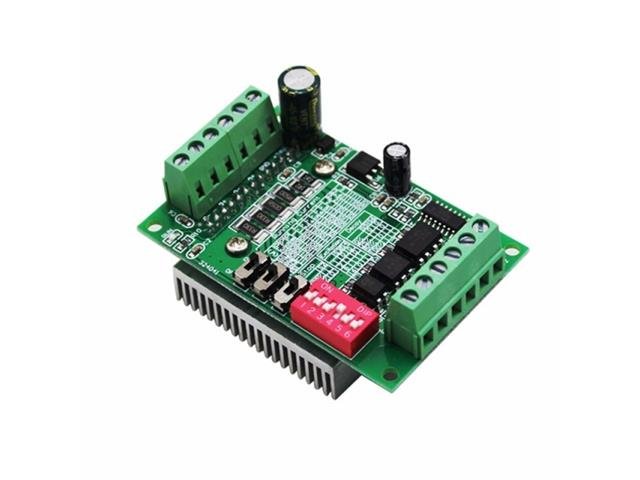

TB6560 3A Stepper Motor Driver Board
Features
- Current level by adjustable to meet your various application requirements.
- Automatic semi-flow adjustable.
- Using 6N137 high-speed optical coupling to ensure high speed without losing step.
- Board printed setup instructions, can use without a use manual

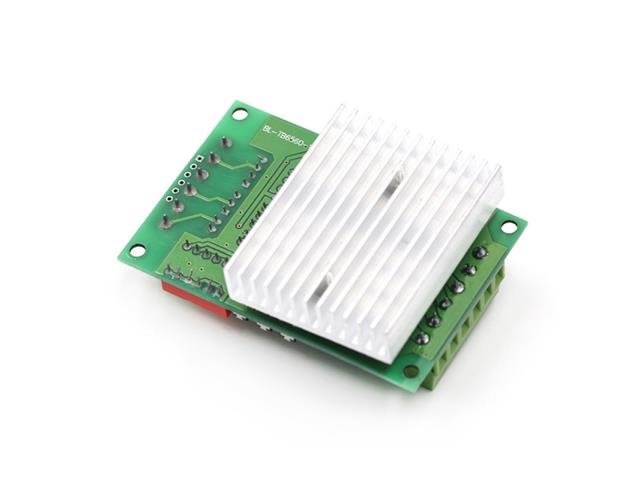

- Using thick fine-toothed radiator, good heat dissipation.
Specifications
- Working voltage DC 10V-35V. Recommend the use of switching power supply DC24V.
- Using 6N137 high-speed optical coupling to maintain high speed without losing step.
- Toshiba TB6560AHQ new original chip, low-pressure shut-off, overheating and over-current protection circuit parking to ensure optimal performance.
- Rated maximum output: ± 3A, peak 3.5A.
- 3A fit within the stepper 42,57 with two-phase / four-phase / four-wire / six-wire stepper motor , not suitable for more than 3A stepper motor.
- Automatic half current function.
- Segments: full step, half step, step 1/8, 1/16 steps, up to 16 segments.
- Dimensions : (length) 75 x 50 (width) (height) 35 (mm)
Additional Information
| Device | Driver Board |
| Type | TB6560 | 3A | Stepper Motor |
| References | How to wire and Datasheet Tutorial to use together with Arduino |
