Product Details

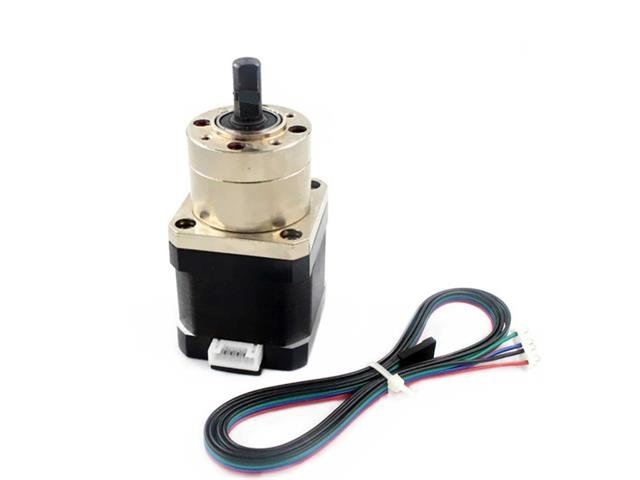

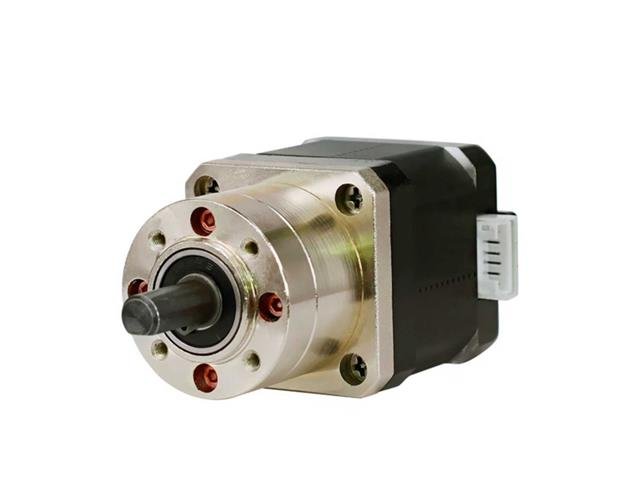

Bipolar Stepper Motor with Planet Gear Box (18KG.CM). (Gear Ratio : 5.18). Standard 8mm - Diameter D Type Output Shaft. 1.8° Step Angle (200 Steps/Revolution)
Bipolar Stepper Motor
Specifications
- Step Angle : 1.8°
- Holding Torque : 1.68Nm
- Rated Current/phase : 1.68A
- Phase Resistance : 1.65ohms
- Recommended Voltage : 12-24V
- Inductance : 3.2mH ± 20%(1KHz)
- Gearbox Type : Planetary
- Gear Ratio : 5.18
- Efficiency : 90%
- Backlash at No-load : <=1°
- Max.Permissible Torque : 2Nm(283oz-in)
- Moment Permissible Torque : 4Nm(566oz-in)
- Shaft Maximum Axial Load : 50N
- Shaft Maximum Radial Load : 100N
- Color : silver + black
- Material : metal + ABS
- 1Pc x Stepper Motor(with Connecting Cable)
Package Contents:
Downloads
Additional Information
| Device | Stepper Motor |
| Type | Bipolar |
