Product Details
23HS5628 NEMA23 2 Phase 4 Wire Hybrid Stepper Motor 1.8DEG, 2,5V , 2.8A, Holding Torque:126N.cm. Shaft D 22x6.35mm
2 Phase 4 Wire Hybrid Stepper Motor
Specifications
- Model :23HS5628
- Phase : 2
- Step Angle : 1.8°

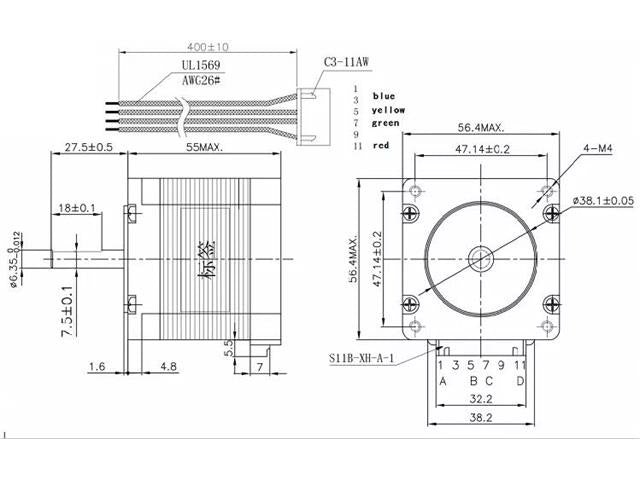

- Motor Frame Size : 57 x 56mm
- Shaft : "D" shaft 22xФ6.35 or 8mm
- Outlet way : "4" plug line
- Motor leads : 30cm Wire
- Adapter drive : Two-phase step drive
- Scope : 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
- Packaging Machinery, Stage Lighting, Laser engraving, Automation
- Equipment, Non-standard Equipment, Placement machine ect.
Electrical Specifications:
- Rated Voltage : 2.5V
- Rated Current : 2.8A
- Resistance/Phase : 0.9Ω
- Inductance/Phase ：2.5（mH）
- Holding Torque : 126 (N.cm)
- Inertia Of Rotor 0300(G. cm2)
- Lead :4
- General Specification:
- Precision angle step : ±5% (full step, no charge)
- Resistance accuracy : ±10%
- Precision inductance : ±20%
- Temperature rise : 80deg Max (rated current, 2 phase on)
- Ambient temperature : ( – 20°)-(+ 50°)
- Insulation resistance : 100MΩ Min, 500VDC
- Insultion Force : 500VAC for a minute
Additional Information
| Device | Stepper Motor |
| Type | 2 Phase | 4 Wire | Hybrid |
