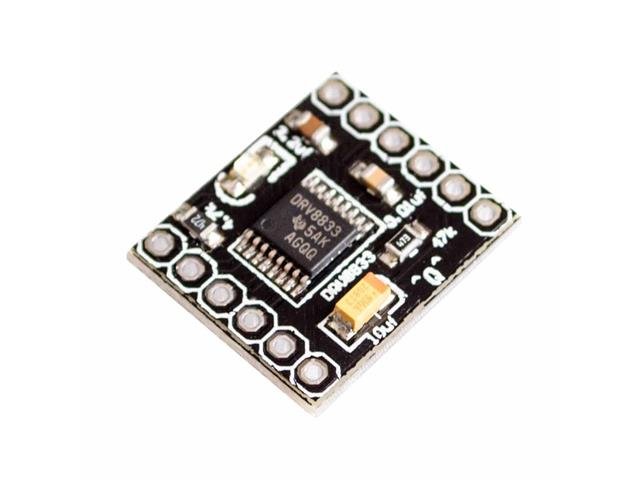

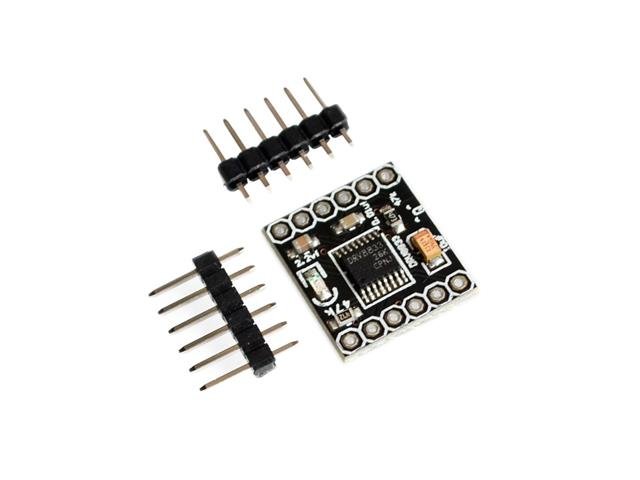

• Size:18.5*16mm
• Input voltage:3V-10V
• Single H-Bridge output current:1.5A(It can drive two DC motor)
• Overcurrent protection:YES
• Short circuit protection:YES
• Undervoltage lockout:YES
• Overheating protection:YES
• With a low-power sleep mode

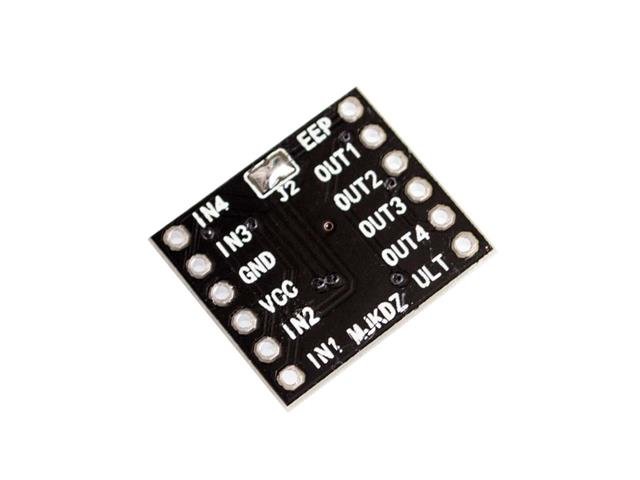

Instructions

• ULT PIN:mode set.Low level is sleep mode
• OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2
• OUT3,OUT4:2-channel H-bridge controlled by IN3/IN4
• EEP PIN:Output protection.Default no need to connect.
• VCC:3-10V
• GND
