Product Details

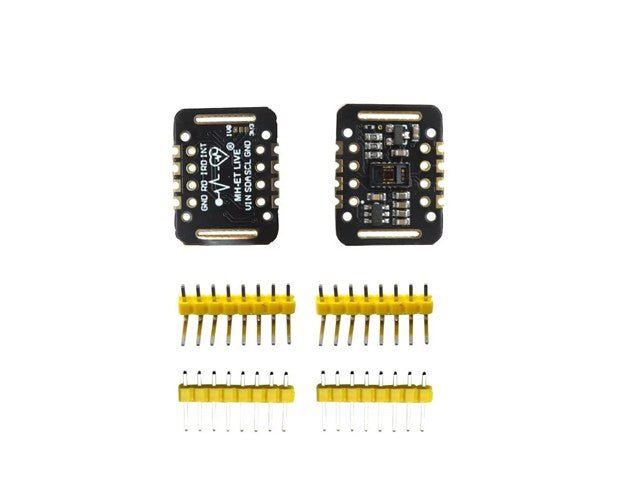

MAX30102 Blood/Oxygen/Heartbeat Sensor
Blood/Oxygen/Heartbeat Sensor
Specifications
- Weight : 2.5g
- Size : 16x21mm
- Header black or yellow random delivery.
- Pin spacing : 2.54mm
- Distance between two rows of pins : 10mm
- VIN : Main power supply input terminal,1.8V-5V
- SCL : Clock connected to I2C bus
- SDA : Data connected to I2C bus
- INT : Interrupt pin of MAX30102 chip
- RD : The RED LED grounding terminal of the MAX30102 chip is generally not connected
- IRD : The IR LED grounding terminal of the MAX30102 chip is generally not connected
- GND : Ground wire
Additional Information
| Device | Sensor |
| Type | Blood | Oxygen | Heartbeat |
