Product Details

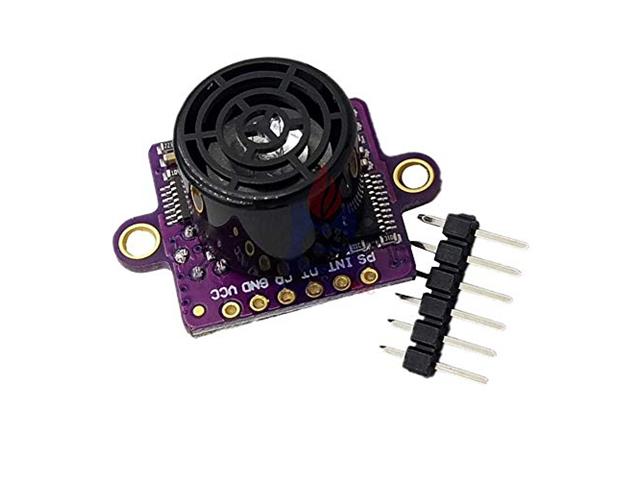

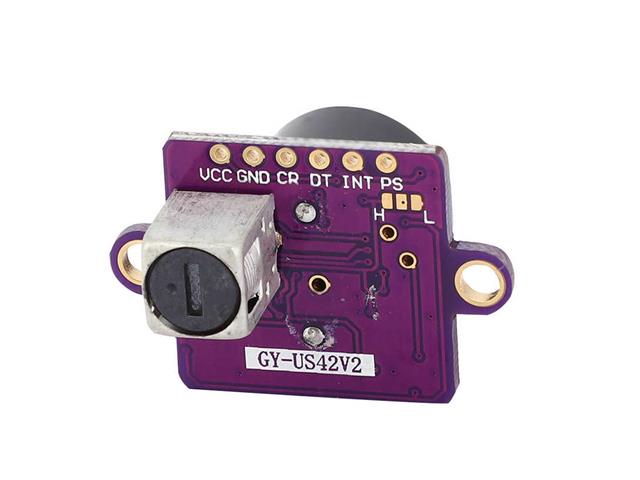

GY-US42 I2C Pixhawk APM Flight Control Ultrasonic Distance Measuring Module
Flight Control Ultrasonic Distance Measuring Module
Features
- GY-US42 Pixhawk APM dedicated ultrasonic module.APM Flight Control Ultrasonic Distance Measuring Module
- I2C interface, plug and play.
- Directly replace MB1242 MB1240.
- Measurement range from 20cm to 7.2m.
- Small size, light weight, easy to use.
Specifications
- Item Type: Flight Control Ultrasonic Raging Module
- Purpose: Directly replace MB1242 MB1240
- Measurement Range: 20cm-720cm (VCC=5V)
- Resolution: 1cm
- Response Frequency: 15HZ(full range)
- Operating Voltage: 3-5V
- Operating Current: 9MA(VCC=5V)
- Operating Temperature: -20~65℃
- Size: 21.5x21x24.5mm / 0.85x0.83x0.96in
Additional Information
| Device | Distance Measuring Module |
| Type | Flight Control | Ultrasonic |
