Product Details
4 x H-Bridge Motor Drivers 0.6A (1.2A PEAK). Can Drive: Motor Voltages From 4.5VDC TO 16VDC. (Up To 36V IF C6 AND C7 Are Upgraded).---Up to 4 Bi-Directional DC Motors with Individual 8-Bit Speed Selection (256 Speeds). Up To 2 Stepper Motors (Uni Or Bipo

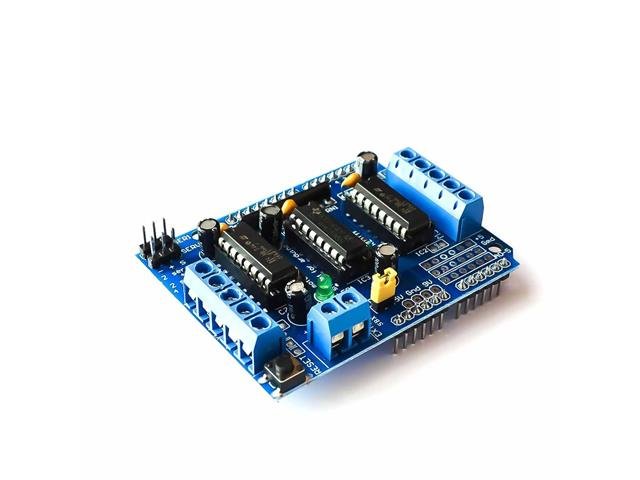

0.6A 4 x H-Bridge Motor Drivers
Overview
L293D use a 16-pin DIP package, its internal integration is a bipolar H – bridge circuit. This kind of bipolar pulse width method has many advantages, such as the current continuous, or microcurrent vibration when the motor stops, which has a lubrication effect. It can eliminate the dead zone of static friction when positive and negative.
Features

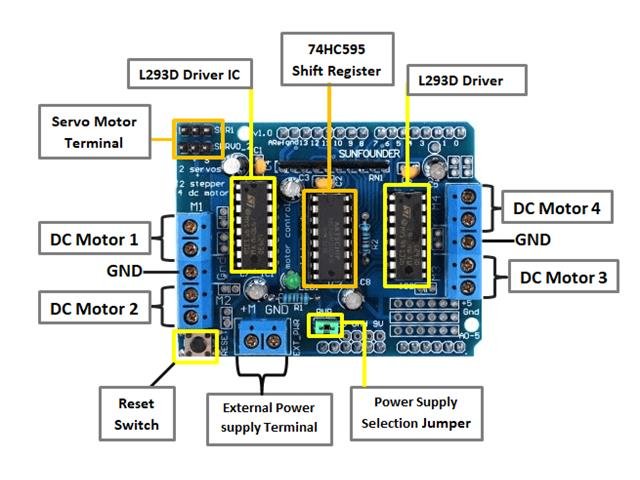

- 2 interface for 5V Servo connected to For Arduino’s high-resolution dedicated timer – no jitter!
- Can drive 4 DC motors or 2 stepper motors or 2 Servo
- Up to 4 bi-directional DC motors with individual 8-bit speed selection
- Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping.
- 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC
- Pull-down resistors keep motors disabled during power-up
- reset button
- 2 external terminal power interfaces, for separate logic/motor supplies
- Tested compatible with Arduino Mega, Diecimila & Duemilanove
Additional Information
| Device | Motor Drivers |
| Type | 0.6A | 4 x H-Bridge |
