XY-L60A---30A Lead-Acid Solar Storage Battery Charge Controller with LCD Module. 6-60V
Solar Storage Battery Charge Controller
Overview
XY-L30A is perfect for keeping battery packs ranging from 6v to 60v fully charged. Ideal for use in electronic projects that are battery powered. The module comes fitted with an automatic battery protection and a range of features for charging
Features
- Application Fields: 6-60V battery including lithium and Lead-acid battery

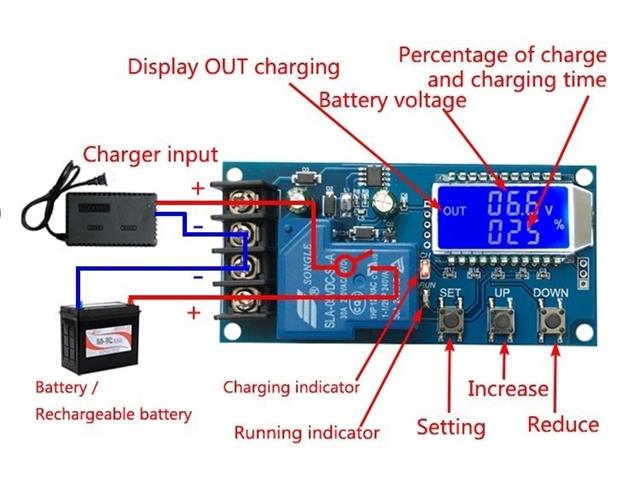

- Liquid crystal display highlighting battery voltage, charging percentage and charging time
- Automatic charging control
- Charging time control
- Setting and uploading corresponding parameters through serial port (UART TTL)
Specifications
- Model Number: XY-L30A
- Charging Voltage Range: 6V to 60V DC
- Max Charging Current: ≤30A
- Charging Accuracy: 0.1V
- Battery Compatibility: Lithium / Multi-Cell Packs (2S to 14S) / Lead Acid
- Onboard Buttons: SET | UP | DOWN
- Onboard Indicators: Charging | Running

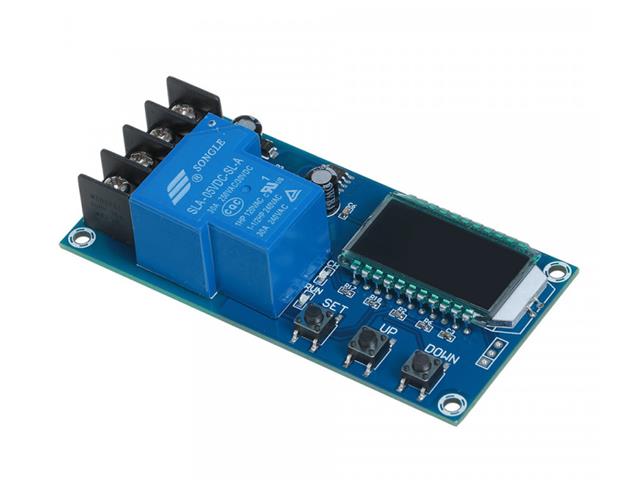

- Integrated Relay: Single 30A Relay: SLA-05VDC-SL-A
- Integrated Display: White on Blue LCD Display
- Weight: 58g

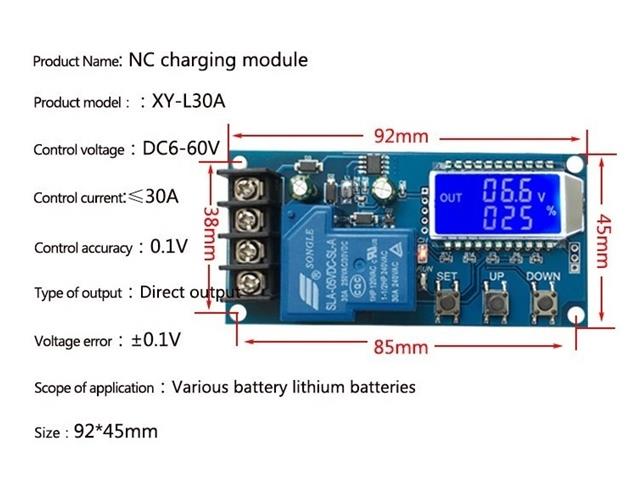

- Dimensions: 92 x 45mm
Downloads
Additional Information
| Device | Battery Charge Controller |
| Type | Solar Storage |
