Product Details
This is a small vibration motor suitable for use as a Non-audible Indicator. When the input is high, the motor will vibrate, just like your silent mobile phone. Rated Voltage: 5.0VDC, Working Voltage: 3.0 - 5.3 VDC,- Rated Speed: Minimum 9000 RPM.

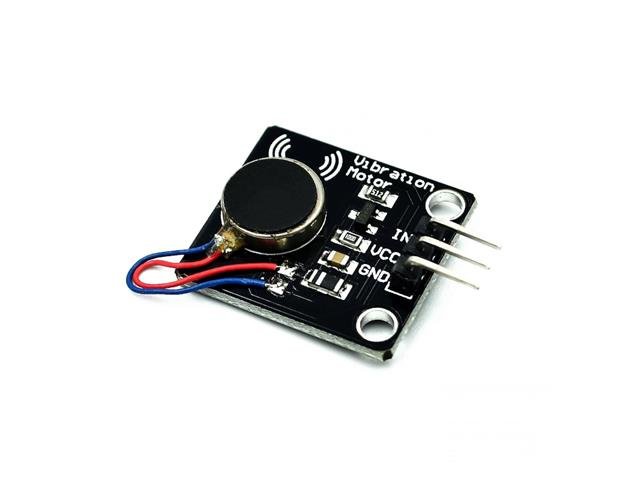

5V Vibration Motor on PCB
Specifications
- Rated Voltage: 5.0VDC
- Working Voltage: 3.0 - 5.3 VDC
- Rated Speed: Minimum 9000 RPM
- Rated Current: Maximum 60 MA
- Start Current: Maximum 90 MA
- Start-up Voltage: DC3.7V
- Insulation Resistance: 10 M OHM
- Compatibility: Compatible with UNO R3/MEGA2560
- Very suitable for diy projects
- Dimensions 21x30mm
- Fixed hole 3mm
- Hole spacing 15mm
- Voltage 5V
- Port Digital Quantity
- Motor: Flat Motor with Diameter of 10 mm and Thickness of 2.7 mm
- Drive MOS Transistor High Level Trigger, Low level cut-off
- Platform for Arduino, Single Chip Microcomputer
Additional Information
| Device | Vibration Motor |
| Type | 5V | PCB |
