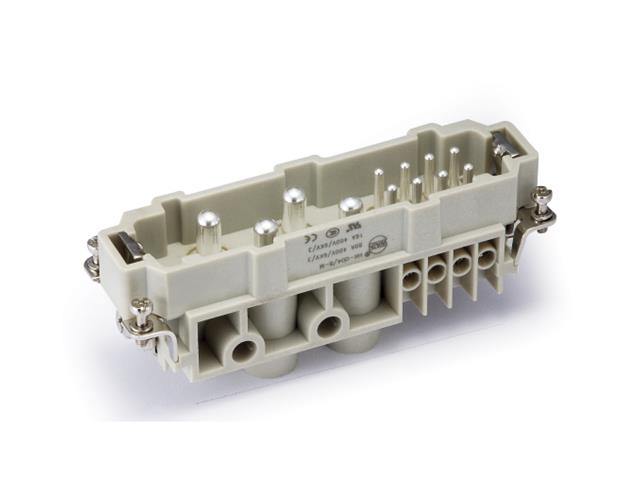

Series K4/8 Insert 12P (4P/8P+E) - Size 24B - Male Screw Termination 4@ 80A/400V - 8@16A/400V
Article No. 128 012 011 0001
Industry No. 09380122601
Size: 24B
Series: K4/8
Inserts |
Number of contacts |
4/2+PE |
Electrical data acc. to EN 61 984 |
|
Power area |
|
---Rated current |
80A |
---Rated voltage |
830V |
---Rated impulse voltage |
8kV |
---Pollution degree |
3 |
---Pollution degree 2 also |
80A 1000V 8kV 2 |
Signal area |
|
---Rated current |
16A |
---Rated voltage |
400V |
---Rated impulse voltage |
6kV |
---Pollution degree |
3 |
---Pollution degree 2 also |
16A 400/690V 6kV 2 |
Rated voltage acc. to UL |
600/300V |
Insulation resistance |
≥1010Ω |
Material |
polycarbonate |
Limiting temperatures |
-40℃...+125℃ |
Flammability acc. to UL 94 |
V0 |
Mechanical working life(mating cycles) |
≥500 |
Contacts |
Power contacts |
|
---Material |
copper alloy |
---Surface |
hard-silver plated |
---Contact resistance |
≤0.3mΩ |
---Screw terminal |
|
------geometric wire gauge |
1.5-16mm² |
------AWG |
16-6 |
---Tightening tourque |
|
------mm² |
mm² |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
N.m |
1.2 |
2 |
3 |
3 |
3 |
3 |
|
------N.m |
---Stripping length |
14mm |
Signal contacts |
|
---Material |
copper alloy |
---Surface |
hard-silver plated |
---Contact resistance |
≤1mΩ |
---Screw terminal |
|
------mm² |
0.5-2.5mm² |
------AWG |
20-14 |
---Tightening tourque |
0.5Nm |
---Stripping length |
7.5mm |
