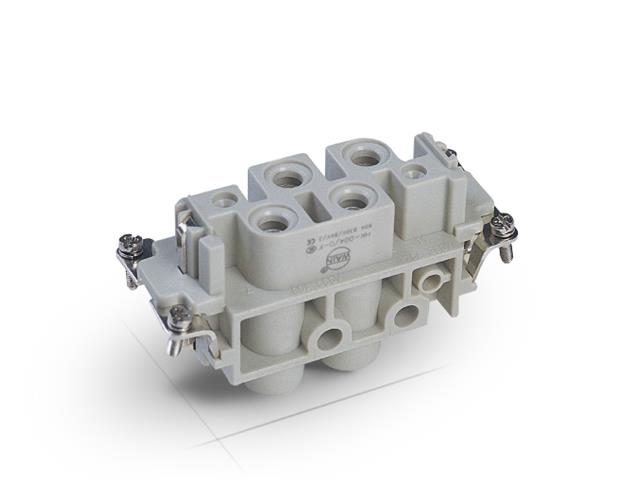

Series K4/2 Insert 6P (4P/2P+E) - Size 16B -  Female Screw Termination 4@ 80A/830V - 2@16A/400V
Article No. 128 006 021 0001
Industry No. 09380062701
Size: 16B
Series: K4/2
Datasheet HK-004/2-F
Inserts
Number of contacts 4/2+PE
Electrical data acc. to EN 61 984
Power area
---Rated current 80A
---Rated voltage 830V
---Rated impulse voltage 8kV
---Pollution degree 3
---Pollution degree 2 also 80A 1000V 8kV 2
Signal area
---Rated current 16A
---Rated voltage 400V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL 600/300V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Power contacts
---Material copper alloy
---Surface hard-silver plated
---Contact resistance ≤0.3mΩ
---Screw terminal
------geometric wire gauge 1.5-16mm²
------AWG 16-6
---Tightening tourque
------mm²
mm² 1.5 2.5 4 6 10 16
N.m 1.2 2 3 3 3 3
------N.m
---Stripping length 14mm
Signal contacts
---Material copper alloy
---Surface hard-silver plated
---Contact resistance ≤1mΩ
---Screw terminal
------mm² 0.5-2.5mm²
------AWG 20-14
---Tightening tourque 0.5Nm
---Stripping length 7.5mm
