Product Details

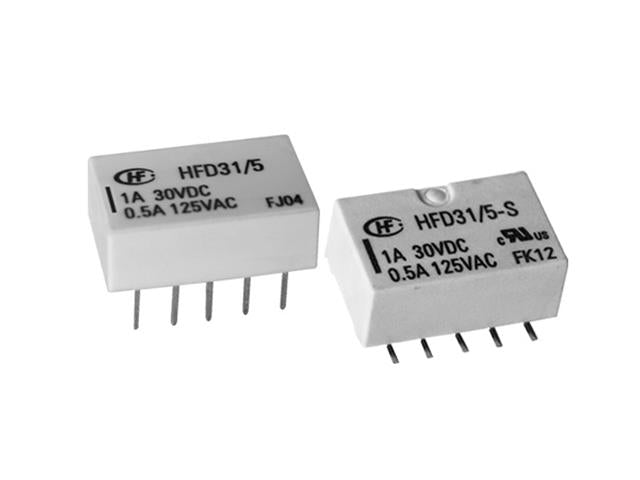

Signal Sub Mini Sealed Relay Form 2C (2c/o) 2,4VDC 41,3 Ohm Coil 1A 30VDC 0,5A 125VAC (250VAC Max.) - Gold Flash Contacts
Signal Sub Mini Sealed Relay
Features
- Offers excellent board space savings
- Surge withstand voltage up to 1500V, meets FCC Part 68
- High contact capacity 1A 30VDC
- Low power consumption
- Single side stable and latching type available
- Single or double coil winding type available
Downloads
Additional Information
| Device | Relay |
| Type | Signal | Sub Mini | Sealed |
| Contact Form | Form 2C |
| Coil Rated Voltage | 2.4V |
| Max. Switching Current | 1A |
| Coil Resistance | 41.3Ω |
